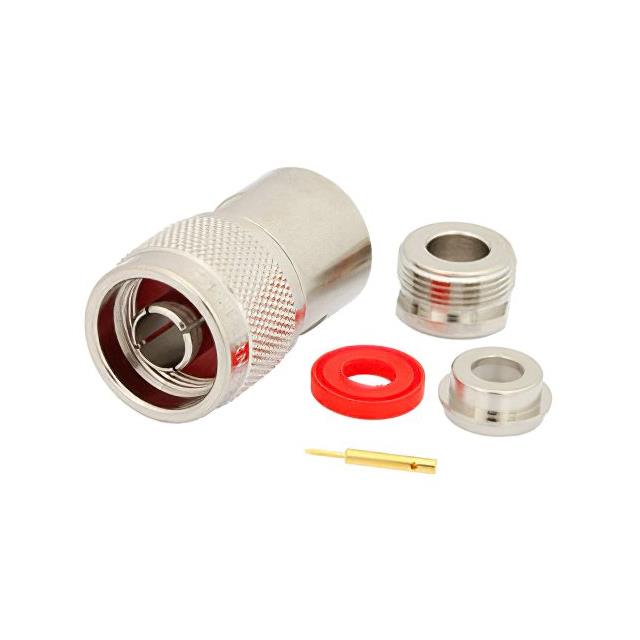

PE4507
ActivePasternack
75 OHM N MALE CONNECTOR CLAMP/SO
PE4507
ActivePasternack
75 OHM N MALE CONNECTOR CLAMP/SO
Description
General part information
PE4507
N Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4507 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-6 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Clamp |
