IDG-2020
ObsoleteTDK Corporation

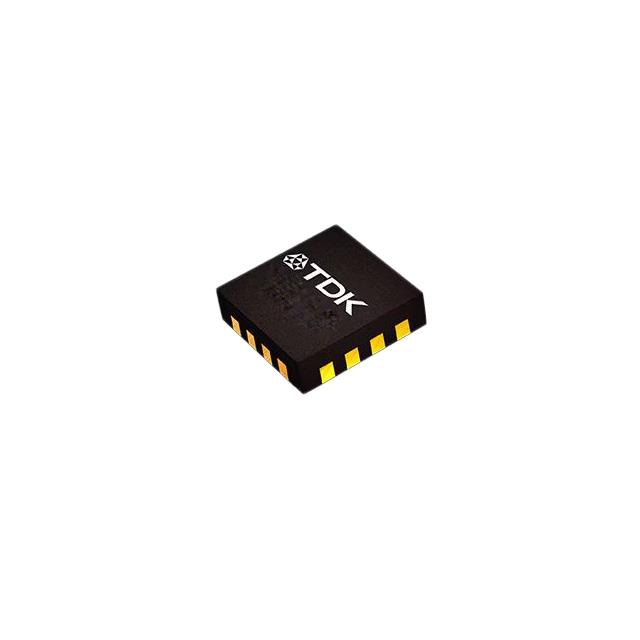

MEMS GYROSCOPE 2-AXIS 16QFN
IDG-2020
ObsoleteTDK Corporation
MEMS GYROSCOPE 2-AXIS 16QFN
Description
General part information
IDG-2020
Gyroscope X (Pitch), Y (Roll) ±31.25, 62.5, 125, 250 5Hz ~ 8.8kHz I2C, SPI 16-LGA (3x3)
Technical Specifications
Parameters and characteristics for this part
| Specification | IDG-2020 |
|---|---|
| Axis | X (Pitch), Y (Roll) |
| Bandwidth (Max) | 8.8 kHz |
| Bandwidth (Min) | 5 Hz |
| Current - Supply | 2.9 mA |
| Features | Sleep Mode, Temperature Sensor, Adjustable Bandwidth |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | I2C, SPI |
| Package / Case | 16-WFLGA Module |
| Range Options | ±31.25, 125, 62.5, 250 |
| Sensitivity (LSB/(°/s)) (Max) | 1048 LSB/(°/s) |
| Sensitivity (LSB/(°/s)) (Min) | 131 LSB/(°/s) |
| Type | Digital |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
