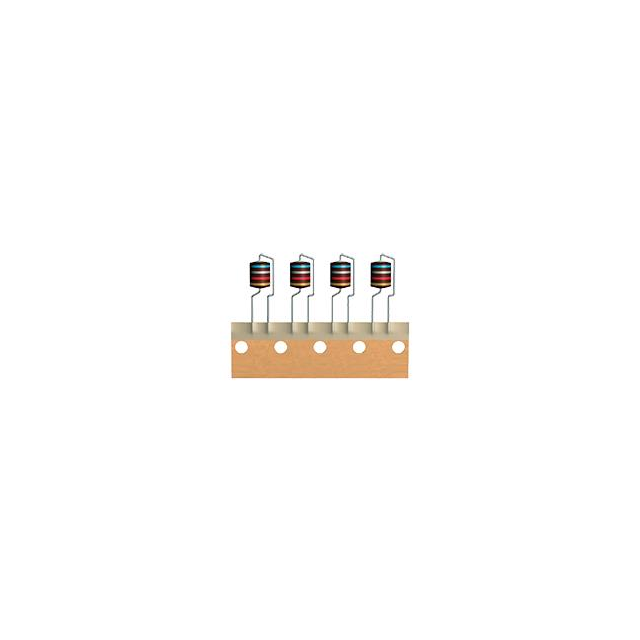

B82144B1824J000
ActiveEPCOS - TDK Electronics
FIXED IND 820UH 310MA 3.7 OHM TH
B82144B1824J000
ActiveEPCOS - TDK Electronics
FIXED IND 820UH 310MA 3.7 OHM TH
Description
General part information
B82144B1824J000
820 µH Unshielded Drum Core, Wirewound Inductor 310 mA 3.7Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144B1824J000 |
|---|---|
| Current Rating | 0.31 A |
| DC Resistance (DCR) (Max) | 3.7 Ohm |
| Frequency - Self Resonant | 2.4 MHz |
| Height - Seated (Max) | 0.571 in |
| Inductance | 0.82 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 20 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
