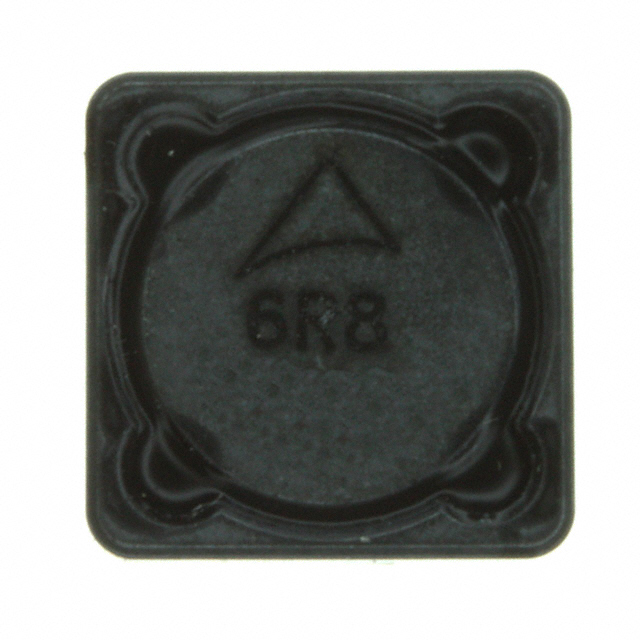

B82464Z4682M
ObsoleteEPCOS - TDK Electronics
FIXED IND 6.8UH 4.3A 20 MOHM SMD
B82464Z4682M
ObsoleteEPCOS - TDK Electronics
FIXED IND 6.8UH 4.3A 20 MOHM SMD
Description
General part information
B82464Z4682M
6.8 µH Shielded Drum Core, Wirewound Inductor 4.3 A 20mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82464Z4682M |
|---|---|
| Current - Saturation (Isat) | 4.6 A |
| Current Rating | 4.3 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.409 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
