STTH1R04UY

Active

STMicroelectronics

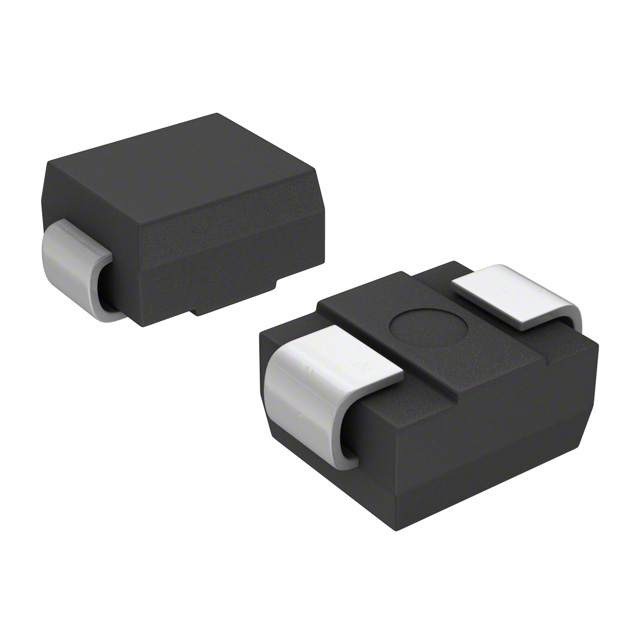

RECTIFIER, SINGLE, 1A, 400V, DO-214AA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProtection Devices & Rectifiers Guide Datasheet +6

STTH1R04UY

Active

STMicroelectronics

RECTIFIER, SINGLE, 1A, 400V, DO-214AA

Deep-Dive with AI

DocumentsProtection Devices & Rectifiers Guide Datasheet +6

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.65
		10	$ 0.40
		100	$ 0.26
		500	$ 0.19
		1000	$ 0.17
	Digi-Reel®	1	$ 0.65
		10	$ 0.40
		100	$ 0.26
		500	$ 0.19
		1000	$ 0.17
	Tape & Reel (TR)	2500	$ 0.11
Newark	Each (Supplied on Cut Tape)	1	$ 0.63
		10	$ 0.39
		25	$ 0.34
		50	$ 0.30
		100	$ 0.25
		250	$ 0.22
		500	$ 0.19
		1000	$ 0.17

Description

General part information

STTH1 Series

The STTH1R04 series uses ST's new 400 V planar Pt doping technology. The STTH1R04 is specially suited for switching mode base drive and transistor circuits.

Packaged in axial and surface mount packages, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.

Documents

Technical documentation and resources

Specification	STTH1R04UY	STTH1 Series

Current - Average Rectified (Io)	1 A	1 - 1.5 A
Current - Reverse Leakage @ Vr	5 µA	1 - 500 µA
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature - Junction [Max]	175 ░C	175 °C
Operating Temperature - Junction [Min]	-40 °C	-40 °C
Package / Case	SMB, DO-214AA	SMB, DO-214AA, DO-204AC, DO-15, Axial, DO-214AC, SMA, SOD-123F, DO-204AL, DO-41, SMB Flat Leads, DO-221AA, SOD-128
Qualification	AEC-Q101	AEC-Q101
Reverse Recovery Time (trr)	30 ns	30 - 80 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SMB	SMB, DO-15, SMA, SOD-123F, DO-41, DO-204AC, SMBflat, SOD128Flat
Supplier Device Package	-	DO-15
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V	200 - 600 V
Voltage - Forward (Vf) (Max) @ If	-	1 - 1.9 V

Part	Speed	Package / Case	Reverse Recovery Time (trr)	Technology	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Grade	Qualification	Operating Temperature - Junction [Min]
STMicroelectronics STTH1L06U	200 mA, 500 ns	DO-214AA, SMB	80 ns	Standard	1 A	600 V	1.3 V	175 °C	SMB	Surface Mount	1 µA
STMicroelectronics STTH1R04QRL	200 mA, 500 ns	Axial, DO-15, DO-204AC	30 ns	Standard	1 A	400 V		175 °C	DO-15	Through Hole	5 µA
STMicroelectronics STTH1R04A	200 mA, 500 ns	DO-214AC, SMA	30 ns	Standard	1 A	400 V		175 °C	SMA	Surface Mount	5 µA
STMicroelectronics STTH1R02U	200 mA, 500 ns	DO-214AA, SMB	30 ns	Standard	1.5 A	200 V	1 V	175 °C	SMB	Surface Mount	3 µA
STMicroelectronics STTH1R02ZF	200 mA, 500 ns	SOD-123F	32 ns	Standard	1 A	200 V	1 V	175 °C	SOD-123F	Surface Mount	500 nA
STMicroelectronics STTH1R04RL	200 mA, 500 ns	Axial, DO-204AL, DO-41	30 ns	Standard	1 A	400 V		175 °C	DO-41	Through Hole	5 µA
STMicroelectronics STTH1R04Q	200 mA, 500 ns	Axial, DO-15, DO-204AC	30 ns	Standard	1 A	400 V		175 °C	DO-204AC	Through Hole	5 µA	DO-15
STMicroelectronics STTH1L06UFY	200 mA, 500 ns	DO-221AA, SMB Flat Leads	60 ns	Standard	1 A	600 V	1.4 V	175 ░C	SMBflat	Surface Mount	1 µA		Automotive	AEC-Q101	-40 °C
STMicroelectronics STTH1R04	200 mA, 500 ns	Axial, DO-204AL, DO-41	30 ns	Standard	1 A	400 V		175 °C	DO-41	Through Hole	5 µA
STMicroelectronics STTH1R02QRL	200 mA, 500 ns	Axial, DO-15, DO-204AC	30 ns	Standard	1.5 A	200 V	1 V	175 °C	DO-15	Through Hole	3 µA
