HG5819P
ActivePasternack

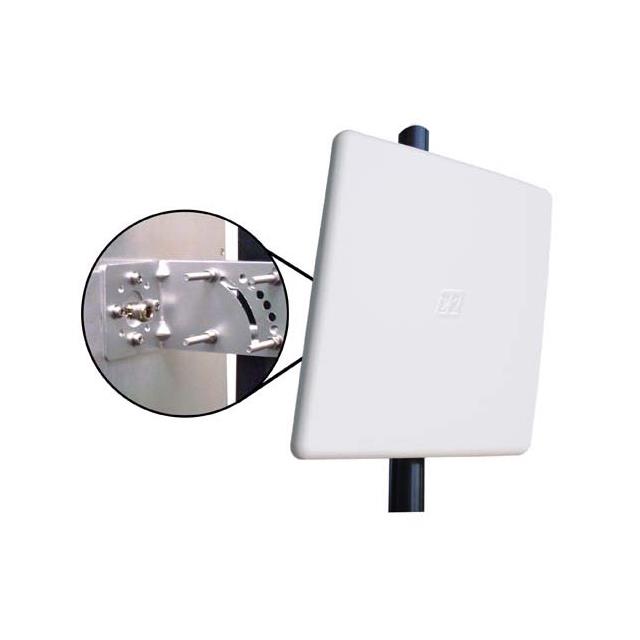

ANTPANEL 5.8GHZ 19DBI
HG5819P
ActivePasternack
ANTPANEL 5.8GHZ 19DBI
Description
General part information
HG5819P
5.787GHz 802.11a, ISM, UNII, Wi-Fi, WLAN Panel RF Antenna 5.725GHz ~ 5.85GHz 19dBi N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG5819P |
|---|---|
| Antenna Type | Panel |
| Applications | WLAN, ISM, Wi-Fi, 802.11a, UNII |
| Frequency (Center/Band) | 5.787 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 5.725 GHz |
| Gain | 19 dBi |
| Height (Max) | 0.98 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 200 W |
| RF Family/Standard | WiFi, General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
