387005354
ActiveLaird Thermal Systems, Inc.
ETX2.6-12-F1-2525-TA-W6
387005354
ActiveLaird Thermal Systems, Inc.
ETX2.6-12-F1-2525-TA-W6
Description
General part information
387005354

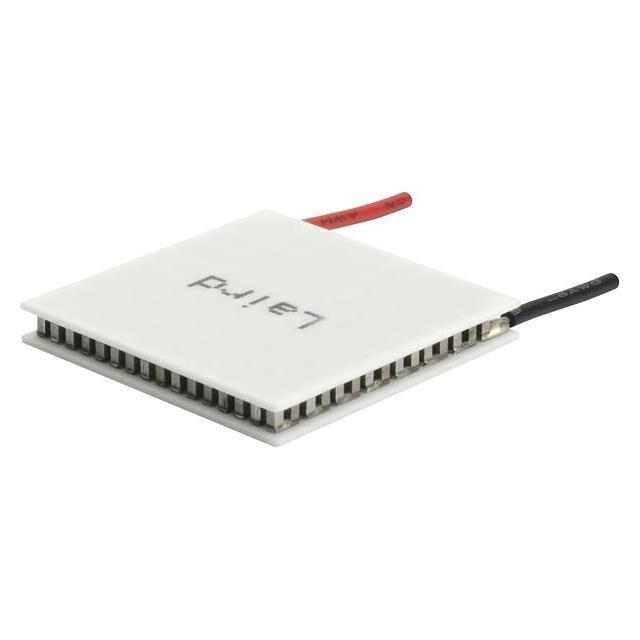

Peltier Module 25.5W @ 50°C 2.6 A 150°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 387005354 |
|---|---|
| Current - Max | 2.6 A |
| Delta Tmax | 83.2 °C |
| Features | Lead Wires, Lapped |
| Height | 3.1 mm |
| Maximum Power Dissipation (Qmax) | 25.5 W |
| Number of Stages | 1 |
| Operating Temperature | 150 °C |
| Resistance | 5.93 Ohms |
| Size / Dimension Length | 25 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 25 mm |
| Voltage - Max | 16.6 V |
