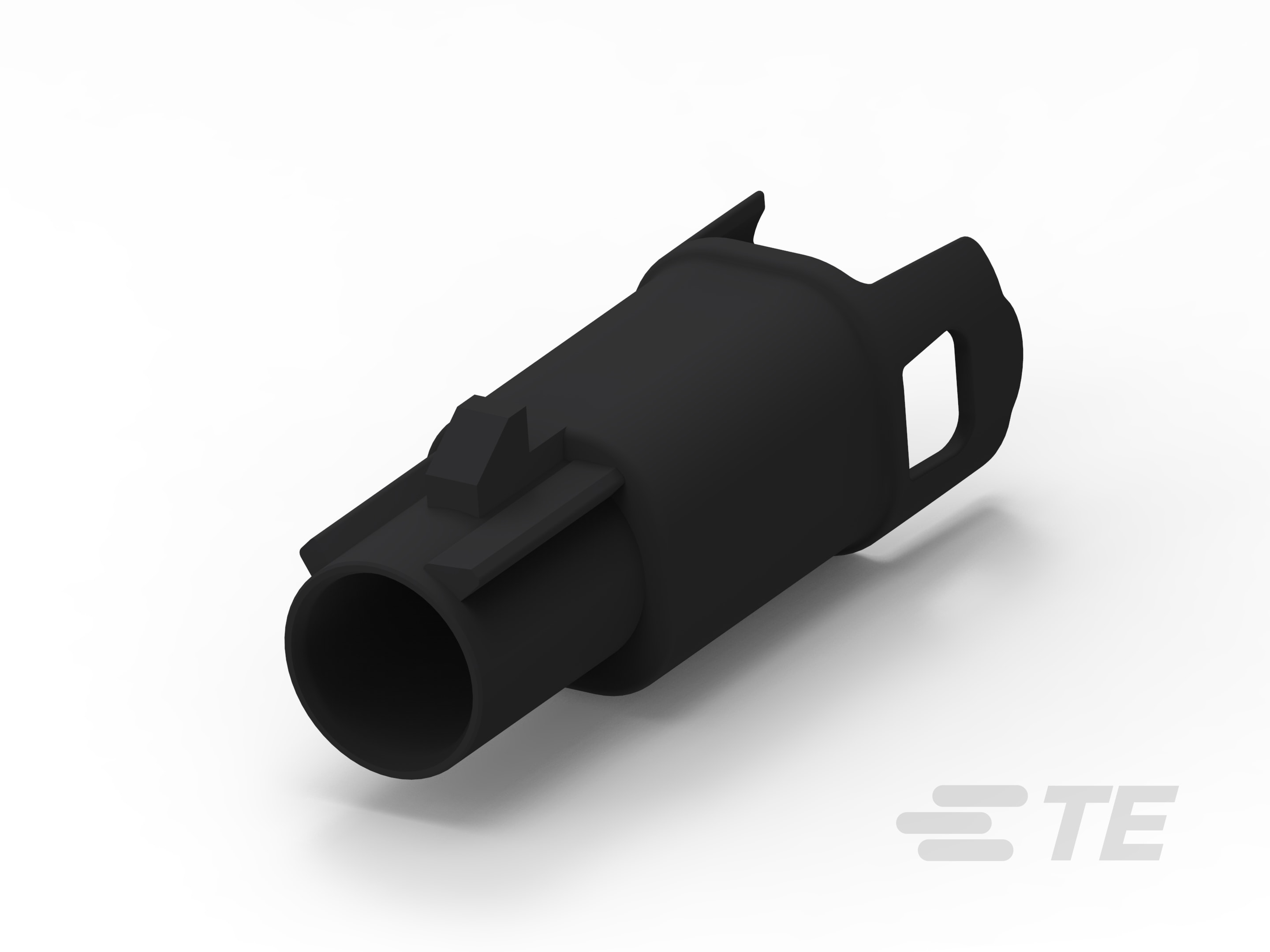

Specification	2307198-1

Accessory Type	Housing
Body Material	PBT, Glass Filled, Polyester, Polybutylene Terephthalate
Color	Black, Jet
Connector Style	Fakra, SMB
Features	Code A
Features - Code	A
For Use With/Related Products	Fakra Male Terminals, SMB

FAKRA RF Connector System Series

...

Part	Features	Color	Accessory Type	For Use With/Related Products	Connector Style	Body Material	Pin or Socket	Contact Termination	Contact Finish	Contact Material	Type	Housing Color	Frequency - Max	Connector Type	Shield Termination	Fastening Type	Mounting Type	Number of Ports	Center Contact Material	Impedance
TE Connectivity AMP Connectors 1452483-6	Code N	Brown	Housing	Fakra Male Terminals SMB	Fakra SMB	Glass Filled PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 2307383-2
TE Connectivity AMP Connectors 2307383-3
TE Connectivity AMP Connectors 2330270-4
TE Connectivity AMP Connectors 4-2203270-3
TE Connectivity AMP Connectors 2289729-3	Code C	Blue Signal	Housing	Fakra Female Contacts SMB	Fakra SMB	Glass Filled PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 1-2005002-1							Socket	Crimp	Gold	Copper	Power
TE Connectivity AMP Connectors 2005001-2							Socket	Crimp	Tin		Stamped
TE Connectivity AMP Connectors 5-2272788-7	Code G				Fakra SMB			Solder				Blue Gray	6000 MHz	Male Pin Plug	Solder	Locking Ramp	Through Hole	2	Brass	50 Ohm
TE Connectivity AMP Connectors 1-1452584-4	Code N	Green	Housing	Fakra Female Contacts SMB	Fakra SMB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
