5650090-6
ActiveTE Connectivity AMP Connectors
STANDARD EDGE .050 SERIES 30 DUAL ASSY
5650090-6
ActiveTE Connectivity AMP Connectors
STANDARD EDGE .050 SERIES 30 DUAL ASSY
Description
General part information
5650090-6

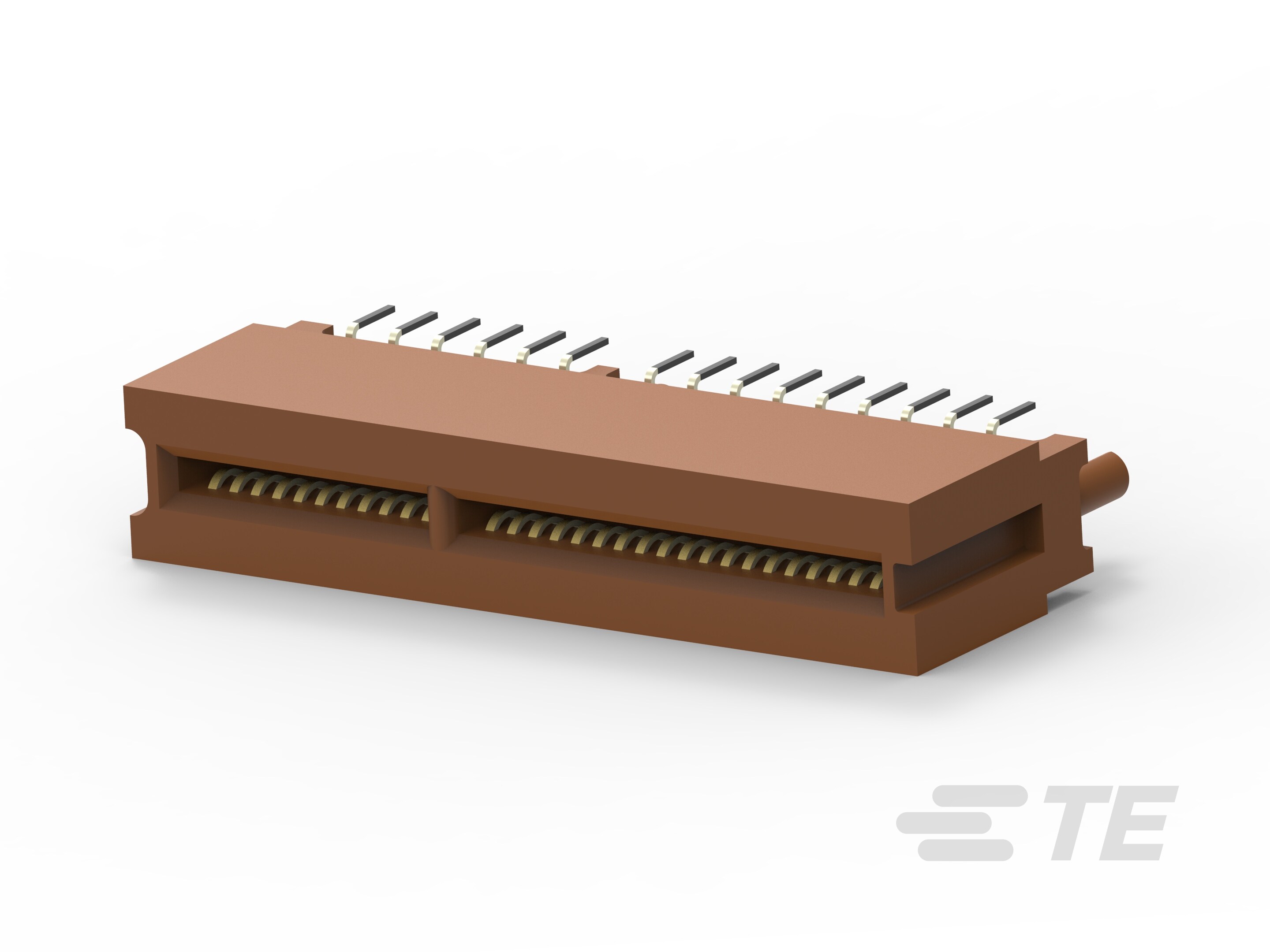

Board-to-Board, 60 Position, 1.27 mm [.05 in] Centerline, 30 Dual Positions, 2 Row, Brown, AMP .050 Series, Standard Edge Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 5650090-6 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | Non Specified, Dual Edge |
| Color | Brown |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Gender | Female |
| Mounting Type | Through Hole |
| Number of Bay | 19 |
| Number of Positions | 60, 11 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.05 in |
| Read Out | Dual |
| Termination | Staggered, Solder |
