Description
General part information
XB7EV06MP

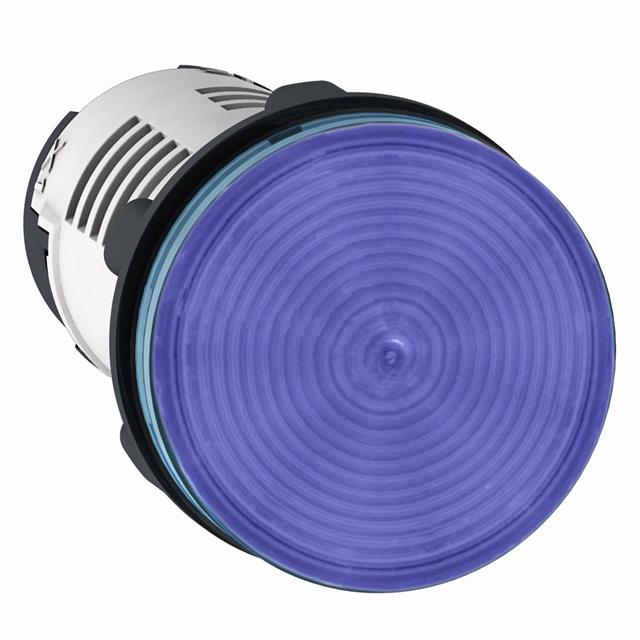

LED Panel Indicator 230V ~ 240V 16mA ~ 20mA Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | XB7EV06MP |
|---|---|
| Current (Max) | 20 mA |
| Current (Min) | 16 mA |
| Ingress Protection | NEMA 4, IP20, 12, IP65 |
| Lens Color | Blue |
| Lens Diameter | 29 mm |
| Lens Style | Round, Flat Top |
| Panel Cutout Dimension | 0.89 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 240 V |
| Voltage (Min) | 230 V |
