HHR-30SCPY20F8
ActivePanasonic Energy
BATTERY PACK NIMH 9.6V SC
HHR-30SCPY20F8
ActivePanasonic Energy
BATTERY PACK NIMH 9.6V SC
Description
General part information

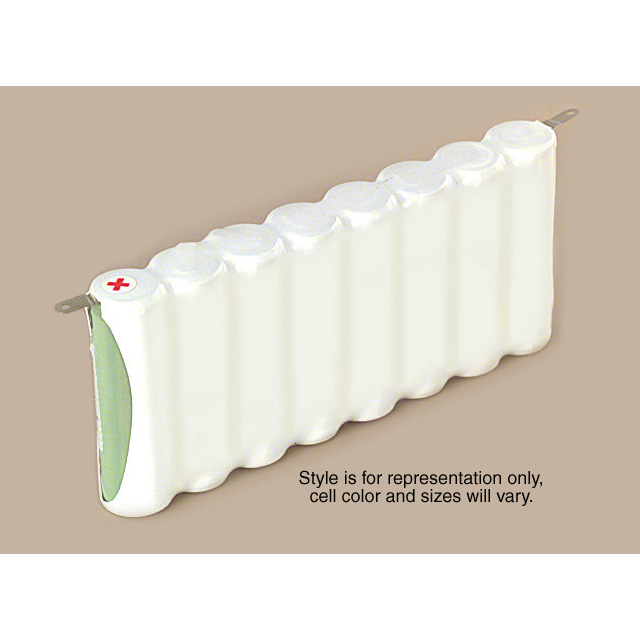

HHR-30SCPY20F8
SC 9.6 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HHR-30SCPY20F8 |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 3 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 8 |
| Rechargeability | Yes |
| Size / Dimension Height | 1.69 in |
| Size / Dimension Length | 7.24 in |
| Size / Dimension Width | 0.91 in |
| Structure | Side to Side |
| Structure Cells | 8 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 9.6 V |
| Weight | 453.59 g |
