3240973
ActivePhoenix Contact

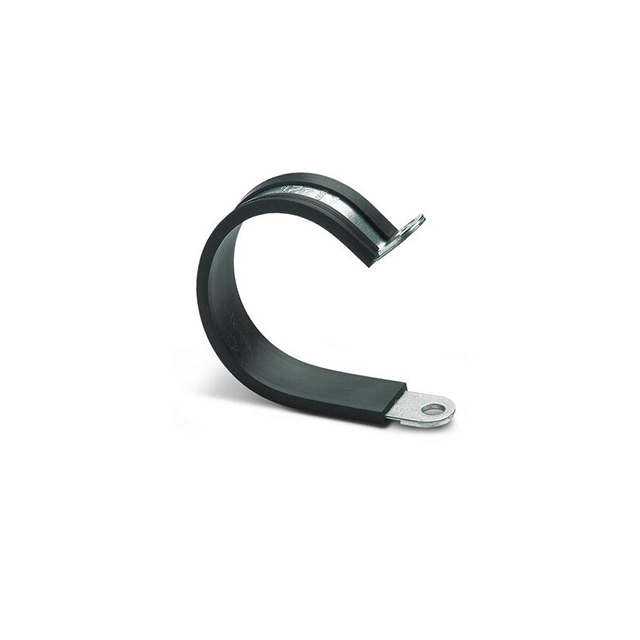

CBL CLAMP P-TYPE FASTENER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3240973
ActivePhoenix Contact
CBL CLAMP P-TYPE FASTENER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240973 | WP-BASE Series |
|---|---|---|
| Color | Black, Silver | Silver, Black |
| Features | Rubber Protective Coating | PG16 Screw Connection, PG21 Screw Connection, Rubber Protective Coating, M25 Screw Connection, M32 Screw Connection |
| Material | Galvanized, Halogen Free, Steel | Steel, Galvanized, Nylon, Polyamide (PA), Halogen Free, Galvanized, Steel |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Fastener | Fastener, Bracket Mount, DIN Rail |
| Opening Size | - | 14 - 37 mm |
| Opening Size | - | 0.551 - 1.457 in |
| Opening Size | - | 29 mm |
| Opening Size | - | 1.142 in |
| Opening Size | - | 13 - 33 mm |
| Opening Size | - | 0.512 - 1.299 in |
| Opening Size [z] | 45 mm | 45 mm |
| Opening Size [z] | 1.772 in | 1.772 in |
| Type | Clamp, P-Type | Support, Hose, Clamp, Hose, Clamp, P-Type |
| Type Attributes | Cushioned | 2 Piece, Strain Relief, Cushioned |
WP-BASE Series
CBL SUPPORT HOSE SILVER BRACKET
| Part | Color | Type | Features | Mounting Type | Opening Size [custom] | Opening Size [custom] | Material | Opening Size [x] | Opening Size [x] | Type Attributes | Material Flammability Rating | Opening Size | Opening Size | Opening Size [z] | Opening Size [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3241079 | Silver | Support, Hose | PG16 Screw Connection | Bracket Mount, Fastener | 23 mm | 0.906 in | Steel, Galvanized | ||||||||
Phoenix Contact 3241080 | Silver | Support, Hose | PG21 Screw Connection | Bracket Mount, Fastener | Steel, Galvanized | 29 mm | 1.142 in | ||||||||
Phoenix Contact 3240958 | Black | Clamp, Hose | DIN Rail | Halogen Free, Nylon, Polyamide (PA) | 2 Piece, Strain Relief | UL94 V-0 | |||||||||
Phoenix Contact 3240967 | Black, Silver | Clamp, P-Type | Rubber Protective Coating | Fastener | 14 mm | 0.551 in | Galvanized, Halogen Free, Steel | Cushioned | |||||||
Phoenix Contact 3240971 | Black, Silver | Clamp, P-Type | Rubber Protective Coating | Fastener | Galvanized, Halogen Free, Steel | 29 mm | 1.142 in | Cushioned | |||||||
Phoenix Contact 3240966 | Black, Silver | Clamp, P-Type | Rubber Protective Coating | Fastener | Galvanized, Halogen Free, Steel | Cushioned | 13 mm | 0.512 in | |||||||
Phoenix Contact 3240973 | Black, Silver | Clamp, P-Type | Rubber Protective Coating | Fastener | Galvanized, Halogen Free, Steel | Cushioned | 45 mm | 1.772 in | |||||||
Phoenix Contact 3241085 | Silver | Support, Hose | M25 Screw Connection | Bracket Mount, Fastener | 26 mm | 1.024 in | Steel, Galvanized | ||||||||
Phoenix Contact 3240972 | Black, Silver | Clamp, P-Type | Rubber Protective Coating | Fastener | 37 mm | 1.457 in | Galvanized, Halogen Free, Steel | Cushioned | |||||||
Phoenix Contact 3241086 | Silver | Support, Hose | M32 Screw Connection | Bracket Mount, Fastener | Steel, Galvanized | 33 mm | 1.299 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 2.33 | |
Description
General part information
WP-BASE Series
Cable Clamp, P-Type Black, Silver Fastener 1.772" (45.00mm)
