842-076-523-212
ActiveEDAC Inc.

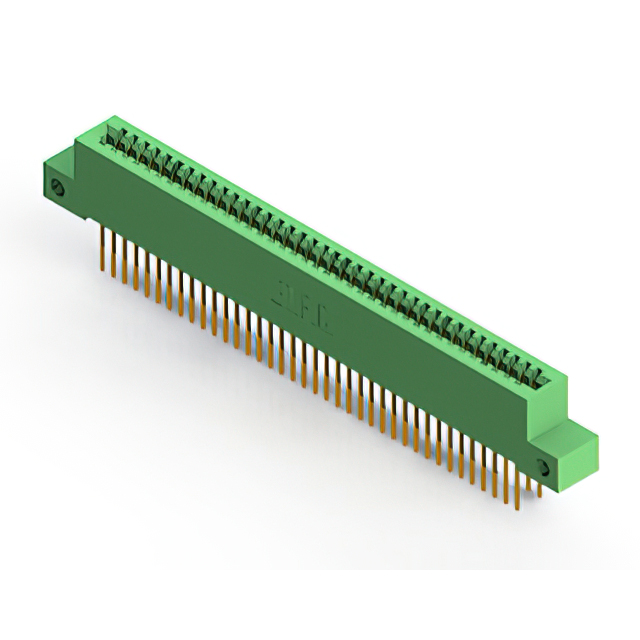

CONN EDGE DUAL FMALE 76POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-076-523-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-076-523-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-076 Series
| Part | Card Type | Contact Finish | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Pitch [x] | Pitch [x] | Mounting Type | Number of Rows | Color | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Termination | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Through Hole Right Angle | 2 | Green | Diallyl Phthalate (DAP) | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | Cantilever | 125 °C | -40 °C | |
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Through Hole | 2 | Green | Diallyl Phthalate (DAP) | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Wire Wrap | Cantilever | 125 °C | -40 °C | ||||
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 2 | Green | Diallyl Phthalate (DAP) | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | Cantilever | 125 °C | -40 °C | Card Extender | |||
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 2 | Green | Diallyl Phthalate (DAP) | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | Cantilever | 125 °C | -40 °C | Card Extender |
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Through Hole | 2 | Green | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Wire Wrap | Cantilever | 125 °C | -40 °C | |||
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Through Hole | 2 | Green | Diallyl Phthalate (DAP) | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | Cantilever | 125 °C | -40 °C | ||||
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Through Hole Right Angle | 2 | Green | Diallyl Phthalate (DAP) | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | Cantilever | 125 °C | -40 °C | ||||
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Through Hole | 2 | Green | Diallyl Phthalate (DAP) | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | Cantilever | 125 °C | -40 °C | |
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 2 | Green | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | Cantilever | 125 °C | -40 °C | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | Gold | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 76 | 2.54 mm | 0.1 in | Through Hole | 2 | Green | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 38 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder Eyelet(s) | Cantilever | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 95.33 | |
Description
General part information
842-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
