1546477-4
ActiveTE Connectivity AMP Connectors

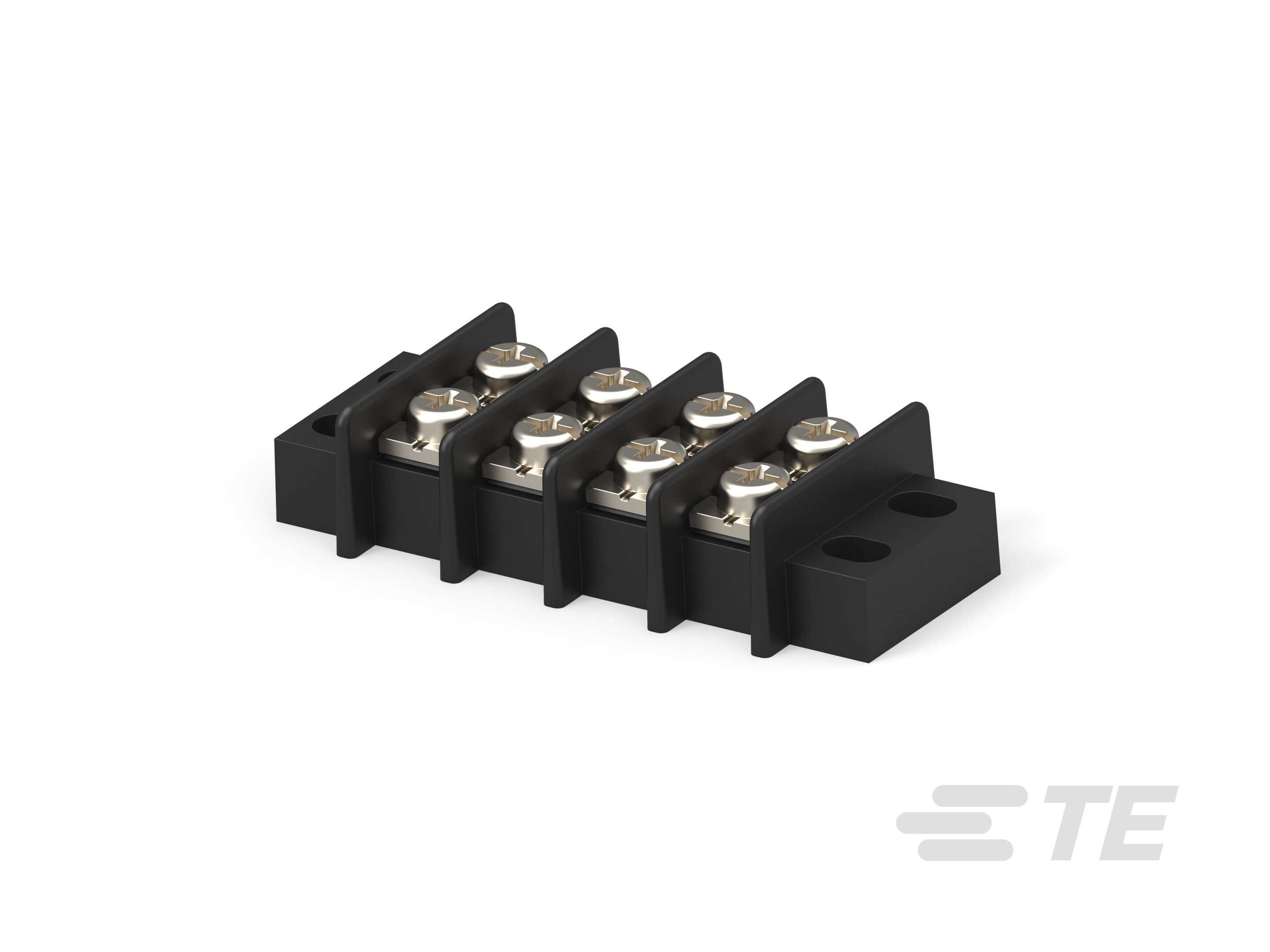

CONN BARRIER STRIP 4CIRC 0.433"
1546477-4
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 4CIRC 0.433"
Description
General part information
1546477-4
4 Position Barrier Strip, Dual Barrier, Wire-to-Wire, 11 mm [.433 in] Centerline, 2 Row, 300 V, 22 – 14 AWG, .3 – 2 mm² Wire, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1546477-4 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating | 25 A |
| Features | Flange |
| Number of Circuits | 4 |
| Number of Rows | 2 |
| Number of Wire Entries | 8 |
| Pitch | 0.433 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
