OPR2100
ActiveTT Electronics/BI

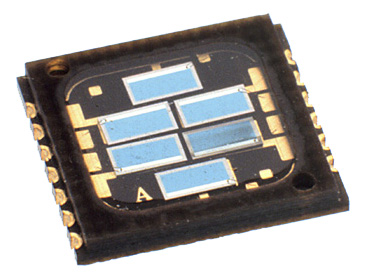

SIX ELEMENT SMD PHOTODIODE ARRAY
OPR2100
ActiveTT Electronics/BI
SIX ELEMENT SMD PHOTODIODE ARRAY
Description
General part information
OPR2100
Photodiode 890nm
Technical Specifications
Parameters and characteristics for this part
| Specification | OPR2100 |
|---|---|
| Active Area | 3.45 mm², 3.45 mm² |
| Active Area Count | 6 count |
| Current - Dark (Typ) | 10 nA |
| Diode Type | Pin |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Responsivity | 0.45 A/W |
| Spectral Range (Maximum) | 1100 nm |
| Spectral Range (Minimum) | 400 nm |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Wavelength | 890 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Optoelectronics for Medical Tri-Fold
RoHs 3 Declaration Form for Juarez Site
REACH Compliance for Juarez Site
Custom Optoelectronic Assemblies Tri-Fold
Optoelectronics One Pager
App Note 240: Surface Mount Chip Carriers
Quality Manual for Juarez Site
RoHs Letter for Juarez Site
Juarez ISO 9001
App Note 237: SMCC Microelectronic History and Handling Considerations
Sensors Product Selection Guide
PCN 1119 OPR2100 OPR2100T OPR2100HST
Declaration of Mineral Conflict Free Material for Juarez Site
PCN 1002 OPR2100 OPR5005 OPR5910 OPR5011
Conflict Minerals Policy for Juarez Site
Supplier Quality Requirements Manual
Lead Free and RoHs Compliance for Juarez Site
