FMWAN1152
ActiveFairview Microwave
SPCL WG ANTENNA TYPE N JACK 0.8-
FMWAN1152
ActiveFairview Microwave
SPCL WG ANTENNA TYPE N JACK 0.8-
Description
General part information
FMWAN1152

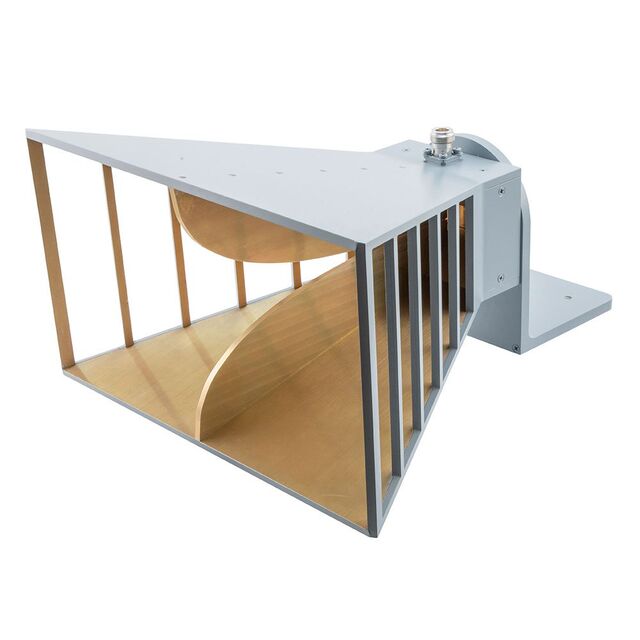

RF ANTENNA General Purpose Horn N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN1152 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 4.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 8 GHz |
| Frequency Range (Min) | 800 MHz |
| Gain | 10 dBi |
| Height (Max) | 6.39 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
| VSWR | 1.3 |
