9886 0101000
ActiveBelden Inc.
MULTI-PAIR 12COND 20AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9886 0101000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 10 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 11.56 mm |
| Jacket (Insulation) Diameter [diameter] | 0.455 in |
| Jacket (Insulation) Material | High Density Polyethylene (HDPE) |
| Jacket (Insulation) Thickness | 1.143 mm |
| Jacket (Insulation) Thickness | 0.045 in |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 12 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Audio, Instrumentation, Control |
| Wire Gauge | 20 AWG |
9886 Series
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Number of Conductors | Features | Usage | Jacket Color | Jacket (Insulation) Material | Length | Length | Wire Gauge | Shield Coverage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | 30 AWG | 10 | Polypropylene (PP) | Copper Tinned | Multi-Pair | Foil | 11.56 mm | 0.455 in | 1.143 mm | 0.045 in | -40 °C | 80 C | Aluminum | 12 | Drain Wire | Audio Control Instrumentation | Black | High Density Polyethylene (HDPE) | 1000 ft | 304.8 m | 20 AWG | 100 % | ||
Belden Inc. | 30 AWG | 10 | Polypropylene (PP) | Copper Tinned | Multi-Pair | Foil | 11.56 mm | 0.455 in | 1.143 mm | 0.045 in | -40 °C | 80 C | Aluminum | 12 | Drain Wire | Audio Control Instrumentation | Black | High Density Polyethylene (HDPE) | 20 AWG | 100 % | 500 ' | 152.4 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 16.14 | |
Description
General part information
9886 Series

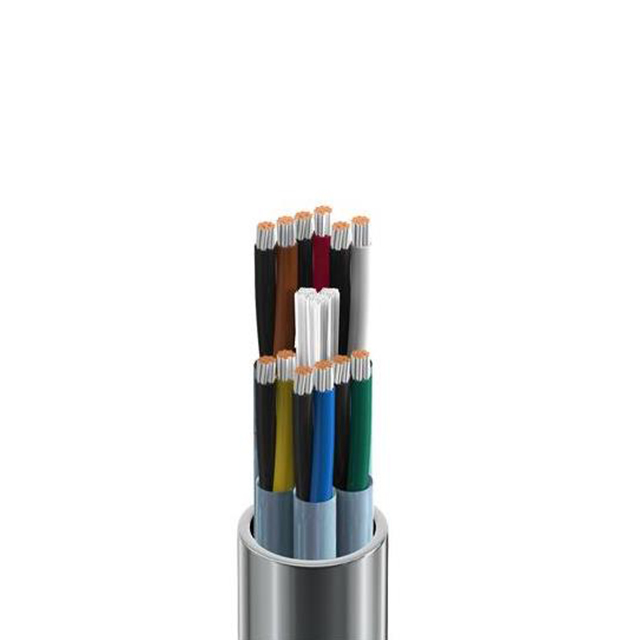

12 (6 Pair Twisted) Conductor Multi-Pair Cable Black 20 AWG Foil 1000.0' (304.8m)
