2PLB3LB-024
ActiveAltech Corporation

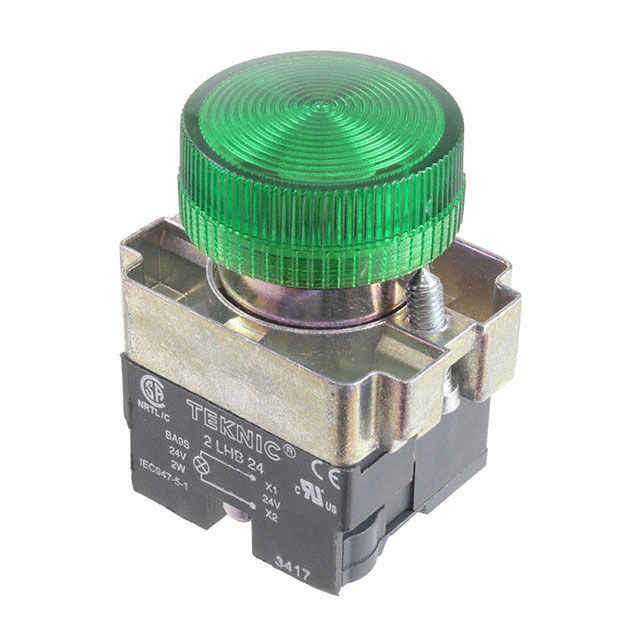

LED PANEL INDICATOR GRN 24V IP65
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2PLB3LB-024
ActiveAltech Corporation
LED PANEL INDICATOR GRN 24V IP65
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2PLB3LB-024 | 2PLB3 Series |
|---|---|---|
| Current | - | 15 mA |
| Ingress Protection | IP65 | 12, NEMA 4X, IP65 |
| Lamp Color | Green | Green |
| Lens Size [diameter] | 28 mm | 28 mm |
| Panel Cutout Dimensions | - | 22 mm |
| Panel Cutout Dimensions | - | 0.87 in |
| Panel Cutout Shape | - | Round |
| Ratings | AC/DC | AC/DC, DC, AC |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | LED | LED, Incandescent |
| Voltage | 24 V | 12 - 230 V |
2PLB3 Series
PILOT LIGHT LED 22 MM GRN 48 V
| Part | Lamp Color | Panel Cutout Shape | Panel Cutout Dimensions | Panel Cutout Dimensions [custom] | Ratings | Lens Size [diameter] | Ingress Protection | Type | Voltage | Termination Style | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 2PLB3LB-048 | Green | Round | 22 mm | 0.87 in | AC/DC | 28 mm | 12, IP65, NEMA 4X | LED | 48 V | ||
Altech Corporation 2PLB3LB-024 | Green | AC/DC | 28 mm | IP65 | LED | 24 V | Screw Terminal | ||||
Altech Corporation 2PLB3-230 | Green | Round | 22 mm | 0.87 in | Incandescent | 230 V | |||||
Altech Corporation 2PLB3LB-230D | Green | Round | 22 mm | 0.87 in | DC | 28 mm | 12, IP65, NEMA 4X | LED | 230 V | ||
Altech Corporation 2PLB3LB-012 | Green | Round | 22 mm | 0.87 in | AC/DC | 28 mm | 12, IP65, NEMA 4X | LED | 12 V | ||
Altech Corporation 2PLB3LB-110 | Green | AC | 28 mm | IP65 | LED | 110 V | Screw Terminal | 15 mA | |||
Altech Corporation 2PLB3LB-230 | Green | Round | 22 mm | 0.87 in | AC | 28 mm | 12, IP65, NEMA 4X | LED | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.25 | |
| 10 | $ 26.04 | |||
| 100 | $ 22.74 | |||
Description
General part information
2PLB3 Series
LED Panel Indicator Green 24V 20mA Screw Terminal
