1456KK4BKBU

Active

Hammond Manufacturing

CONSOLE ALUM 10.48"L X 10.18"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1456 Series

1456KK4BKBU

Active

Hammond Manufacturing

CONSOLE ALUM 10.48"L X 10.18"W

Deep-Dive with AI

Documents1456 Series

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.35
		5	$ 43.45
		10	$ 40.55
		25	$ 39.83
		50	$ 39.11
		100	$ 38.53
		250	$ 37.66

Description

General part information

1456 Series

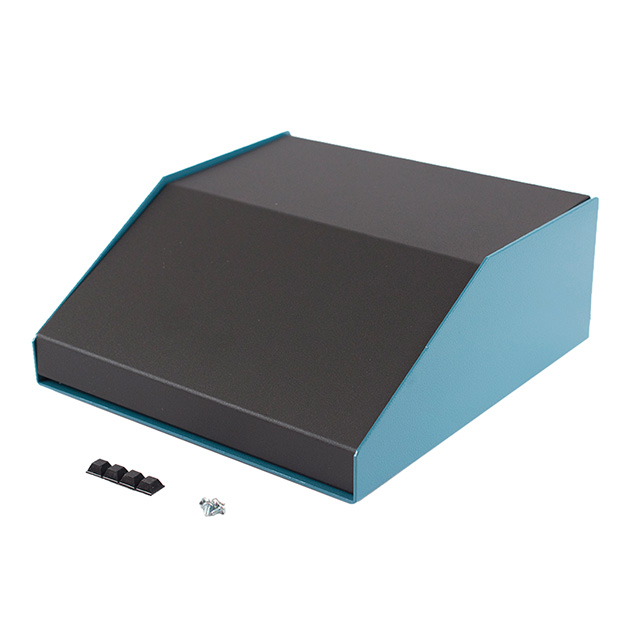

Console Metal, Aluminum Black, Blue Slanted Top 10.480" L x 10.180" W (266.19mm x 258.57mm) X 4.210" (106.93mm)

Documents

Technical documentation and resources

1456 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1456KK4BKBU	1456 Series

Area (L x W)	107 in²	38.4 - 235 in²
Area (L x W)	690 cm²	248 - 1516 cm²
Area (L x W)	-	76.2 - 149 in²
Area (L x W)	-	961 cm²
Area (L x W)	-	492 cm²
Area (L x W)	-	155 - 948 cm²
Area (L x W)	-	24 - 147 in²
Area (L x W)	-	787 cm²
Area (L x W)	-	122 in²
Color	Black, Blue	Black, Blue, White
Container Type	Console	Console
Design	Slanted Top	Slanted Top
Features	Slope	Slope, Walnut Side Panels
Features	30 °	10 - 30 °
Height [z]	106.93 mm	56.13 - 106.93 mm
Height [z]	4.21 in	2.21 - 101.6 in
Material	Metal, Aluminum	Metal, Aluminum, Wood
Size / Dimension	10.18 ", 10.48 "	10.18 - 514.6 mm
Size / Dimension	258.57 mm, 266.19 mm	258.57 - 266.19 mm
Size / Dimension	-	146.05 - 294.89 mm
Size / Dimension	-	5.77 - 20.26 in
Size / Dimension	-	4.18 - 11.61 in
Size / Dimension	-	146.56 - 514.6 mm
Size / Dimension	-	106.17 mm
Thickness	2.06 mm	2.06 mm
Thickness	0.081 in	0.081 in

1456 Series

CONSOLE ALUM 14.18"L X 10.48"W

Part	Design	Height [z]	Height [z]	Area (L x W) [x]	Area (L x W) [y]	Material	Features	Features	Container Type	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Area (L x W) [x]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension
Hammond Manufacturing 1456PK4BKBU	Slanted Top	106.93 mm	4.21 in	149 in²	961 cm²	Aluminum, Metal	Slope	30 °	Console	Black, Blue	266.19 mm	14.18 in	10.48 in	360.17 mm	2.06 mm	0.081 in
Hammond Manufacturing 1456KG4BKBU	Slanted Top	106.93 mm	4.21 in	76.2 in²		Aluminum, Metal	Slope	30 °	Console	Black, Blue	189.99 mm	10.18 in	7.48 in	258.57 mm	2.06 mm	0.081 in	492 cm²
Hammond Manufacturing 1456RH3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	218.69 mm	17.12 "	8.61 "	434.85 mm	2.06 mm	0.081 in		948 cm²	147 in²
Hammond Manufacturing 1456RK4WHBU	Slanted Top	106.93 mm	4.21 in			Aluminum, Metal	Slope	30 °	Console	Blue, White	266.19 mm	17.12 "	10.48 in	434.85 mm	2.06 mm	0.081 in				179 in²	1155 cm²
Hammond Manufacturing 1456RL3WHBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Blue, White	294.89 mm	17.12 "	11.61 in	434.85 mm	2.06 mm	0.081 in				199 in˛	1284 cm˛
Hammond Manufacturing 1456KL3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	258.57 mm	11.61 "	10.18 "	294.89 mm	2.06 mm	0.081 in				118 in˛	761 cm˛
Hammond Manufacturing 1456PH3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	218.69 mm	14.18 in	8.61 "	360.17 mm	2.06 mm	0.081 in						787 cm²	122 in²
Hammond Manufacturing 1456PH3WHBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Blue, White	218.69 mm	14.18 in	8.61 "	360.17 mm	2.06 mm	0.081 in						787 cm²	122 in²
Hammond Manufacturing 1456FH3WHBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Blue, White		8.61 in	6.68 "		2.06 mm	0.081 in				57.5 in²	371 cm²			169.67 mm, 218.69 mm
Hammond Manufacturing 1456RL3BKBU	Slanted Top	81.53 mm	3.21 in			Aluminum, Metal	Slope	15 °	Console	Black, Blue	294.89 mm	17.12 "	11.61 in	434.85 mm	2.06 mm	0.081 in				199 in˛	1284 cm˛
