2611803
ActiveSAB North America

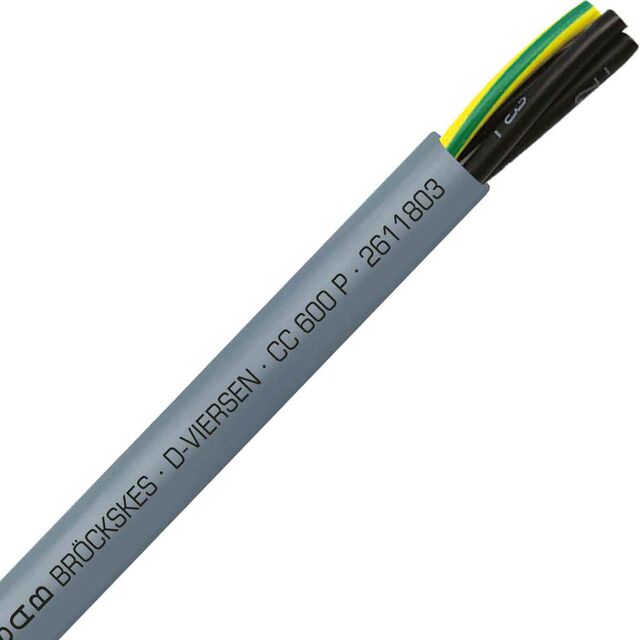

CABLE 3COND 18 AWG GRAY 1=1FT
2611803
ActiveSAB North America
CABLE 3COND 18 AWG GRAY 1=1FT
Description
General part information
2611803
3 Conductor Multi-Conductor Cable Gray 18 AWG Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 2611803 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 30 |
| Conductor Strand Gauge | 32 AWG |
| Features | Abrasion Resistant, Oil Resistant |
| Jacket (Insulation) Diameter | 0.28 in |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 3 |
| Operating Temperature | 80 °C |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | 21060, UL, Style |
| Usage | Control, Industrial |
| Voltage | 600 V |
| Wire Gauge | 18 AWG |
