3-967624-1
ActiveTE Connectivity AMP Connectors

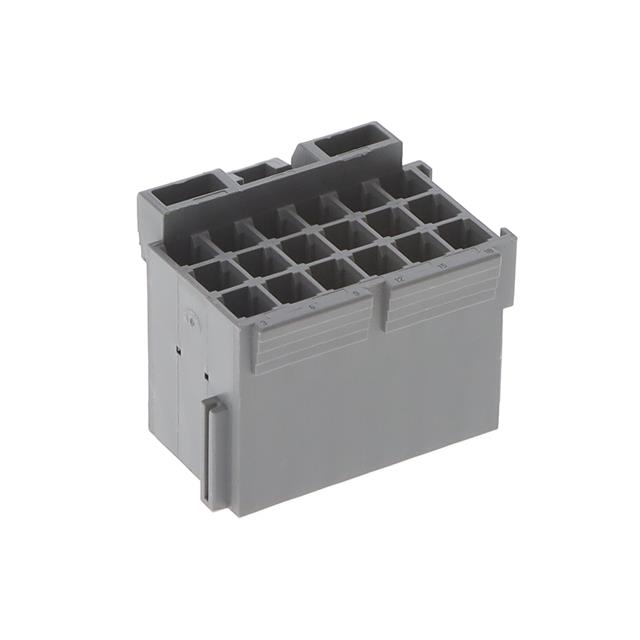

CONN RCPT HSG 18POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-967624-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 18POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-967624-1 | 967624 Series |
|---|---|---|
| Color | Gray | Brown, Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Lock, Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 18 | 18 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 5.51 mm | 3.6 - 5.51 mm |
| Row Spacing | - | 0.142 in |
| Row Spacing [x] | 0.217 in | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.66 | |||
967624 Series
JUN-POW-TIM HSG 18P
| Part | Fastening Type | Color | Connector Type | Contact Termination | Mounting Type | Number of Rows | Insulation Material | Contact Type | Row Spacing | Row Spacing | Pitch [x] | Pitch [x] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Note | Row Spacing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967624-6 | Latch Lock | Brown | Receptacle | Crimp | Free Hanging (In-Line) | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | 0.142 in | 3.6 mm | 5 mm | 0.197 in | 18 | ||||
TE Connectivity AMP Connectors 3-967624-1 | Latch Holder | Gray | Receptacle | Crimp | Free Hanging (In-Line) | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | 5.51 mm | 5 mm | 0.197 in | 18 | 100 °C | -30 ░C | Contacts Not Included | 0.217 in | |
TE Connectivity AMP Connectors 1-967624-1 | Latch Holder | Gray | Receptacle | Crimp | Free Hanging (In-Line) | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | 5.51 mm | 5 mm | 0.197 in | 18 | 100 °C | -30 ░C | Contacts Not Included | 0.217 in |
Description
General part information
967624 Series
18 Rectangular Connectors - Housings Receptacle Gray 0.197" (5.00mm)
