KRFS240A-12
ActiveElpress Inc.

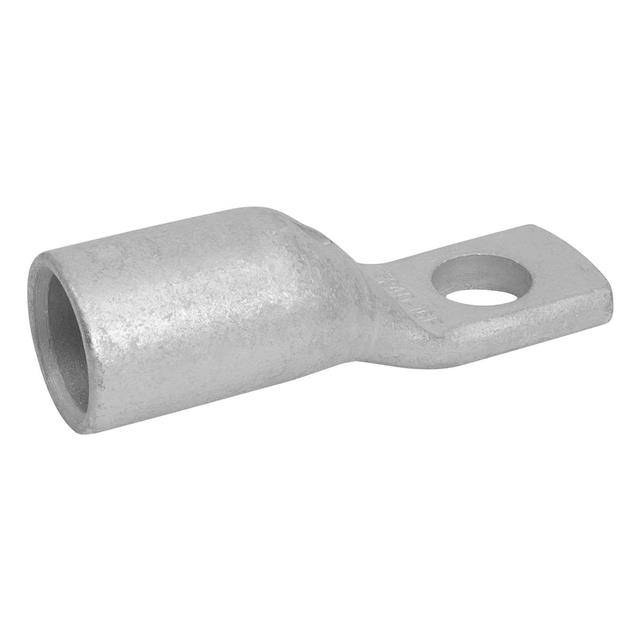

RING NARROW TONGUE 240MM M12
KRFS240A-12
ActiveElpress Inc.
RING NARROW TONGUE 240MM M12
Description
General part information
KRFS240A-12
Terminal Connector Rectangular Ring, Tubular 500MCM (kcmil) M12 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRFS240A-12 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 3.583 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud, M12 |
| Tab Thickness | 0.303 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 1.141 in |
| Wire Gauge (MCM) | 500 MCM |
