CONN007-1-W
ActiveTE Connectivity AMP Connectors

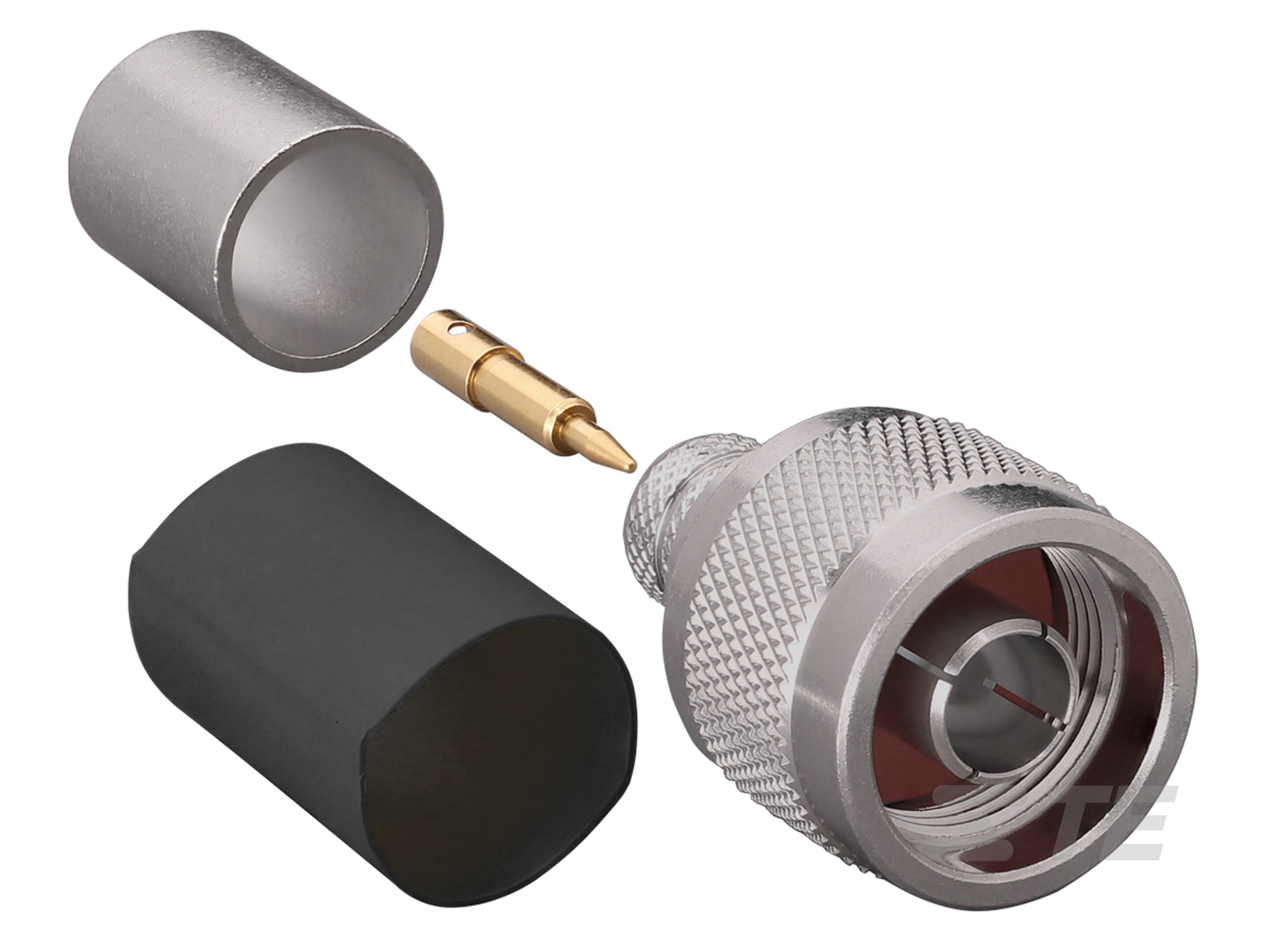

N TYPE PLUG 50 OHM CABLE CRIMP
CONN007-1-W
ActiveTE Connectivity AMP Connectors
N TYPE PLUG 50 OHM CABLE CRIMP
Description
General part information
CONN007-1-W
N Type Connector, Plug, 50 ohm, Threaded, 11 GHz, 1 Position, Wire & Cable, Cable Mount (Free-Hanging), -60 – 165 °C [-76 – 329 °F], Crimp, Straight
Technical Specifications
Parameters and characteristics for this part
| Specification | CONN007-1-W |
|---|---|
| Cable Group | RG-8, LMR400, Belden 9913, 9914 |
| Center Contact Material | Brass |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Features | Low PIM |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
