BAC02-G
ActivePasternack
CONN SMA M RA RG58 CRIMP GOLD
BAC02-G
ActivePasternack
CONN SMA M RA RG58 CRIMP GOLD
Description
General part information
BAC02-G

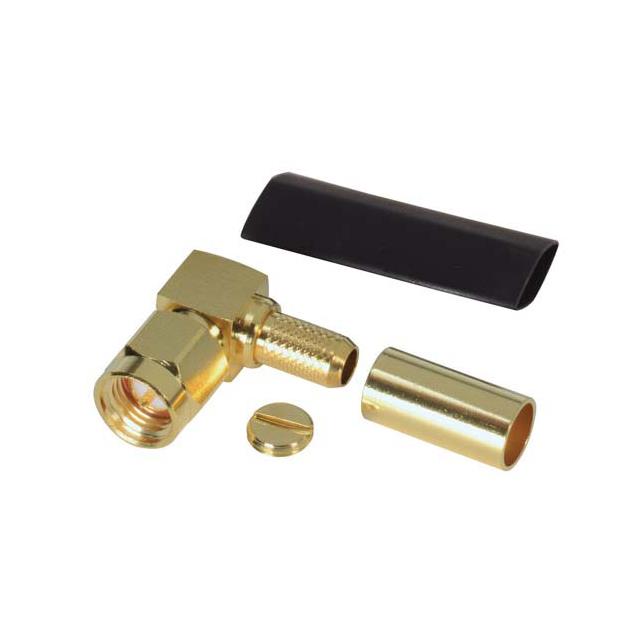

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC02-G |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
