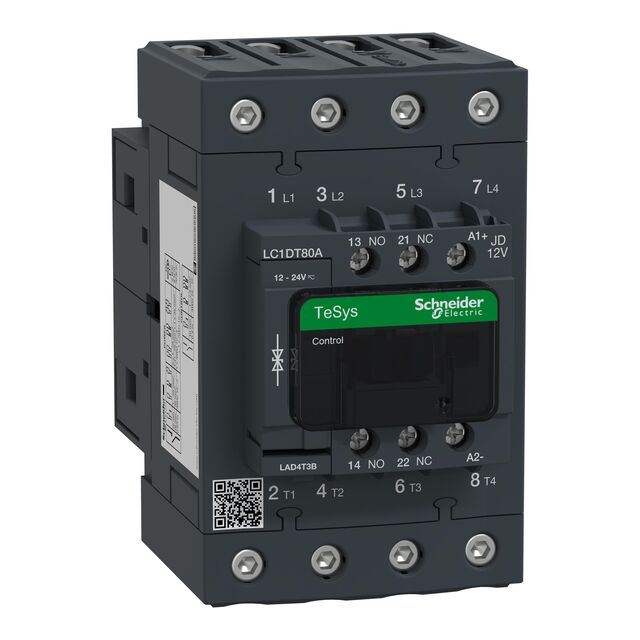

LC1DT80AJD
ActiveSCHNEIDER ELECTRIC
TESYS 4P EVLK CONTACTOR 80A AC1
LC1DT80AJD
ActiveSCHNEIDER ELECTRIC
TESYS 4P EVLK CONTACTOR 80A AC1
Description
General part information
LC1DT80AJD
TESYS 4P EVLK CONTACTOR 80A AC1
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT80AJD |
|---|---|
| Coil Voltage | 12 VAC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 80 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 V |
| Operate Time | 57.5 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
