N206-SB01-IND
ActiveEaton Tripp Lite
JUNCTION BOX PLAS WHITE 3"LX3"W
N206-SB01-IND
ActiveEaton Tripp Lite
JUNCTION BOX PLAS WHITE 3"LX3"W
Description
General part information
N206-SB01-IND

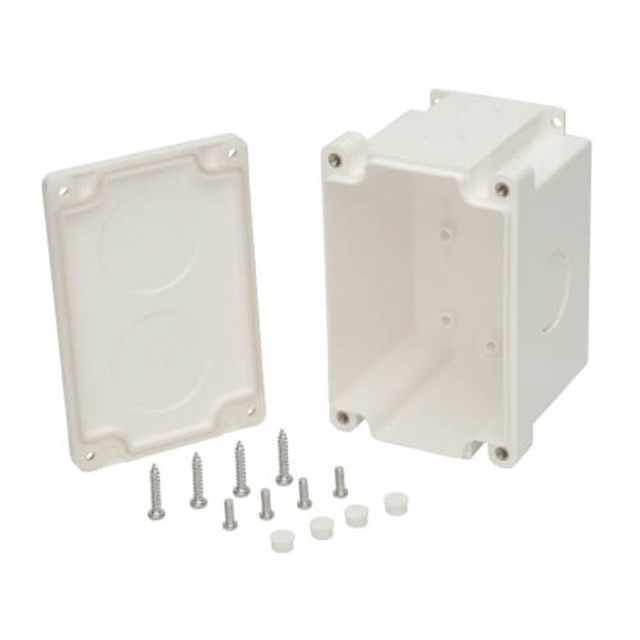

Junction Box Plastic, Polycarbonate White Hand Held, Cover Included 3.000" L x 3.000" W (76.20mm x 76.20mm) X 4.700" (119.38mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | N206-SB01-IND |
|---|---|
| Color | White |
| Container Type | Junction Box |
| Design | Cover Included, Hand Held |
| Height | 4.7 in |
| Material | Polycarbonate, Plastic |
| Material Flammability Rating | UL94 V-0 |
| Ratings | IP67 |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 3 in |
