EC35AH260403
ActiveALPS ALPINE CO., LTD

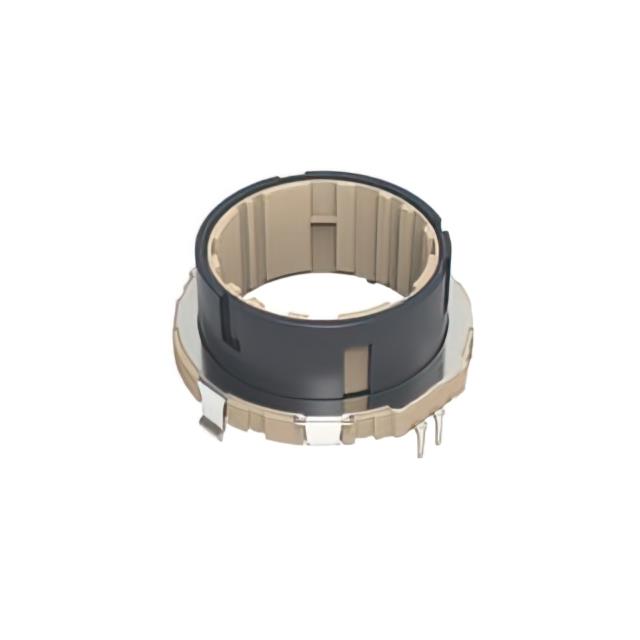

ENCODERS RING TYPE CAPABLE OF COMPOSITE CONTROL
EC35AH260403
ActiveALPS ALPINE CO., LTD
ENCODERS RING TYPE CAPABLE OF COMPOSITE CONTROL
Description
General part information
EC35AH260403
Rotary Encoder Incremental 10 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | EC35AH260403 |
|---|---|
| Actuator Type | 35mm Open Center |
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Incremental |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 10 |
| Rotational Life (Cycles Min) | 50 K |
| Termination Style | PC Pin |
| Voltage - Supply | 5 VDC |
