Description
General part information

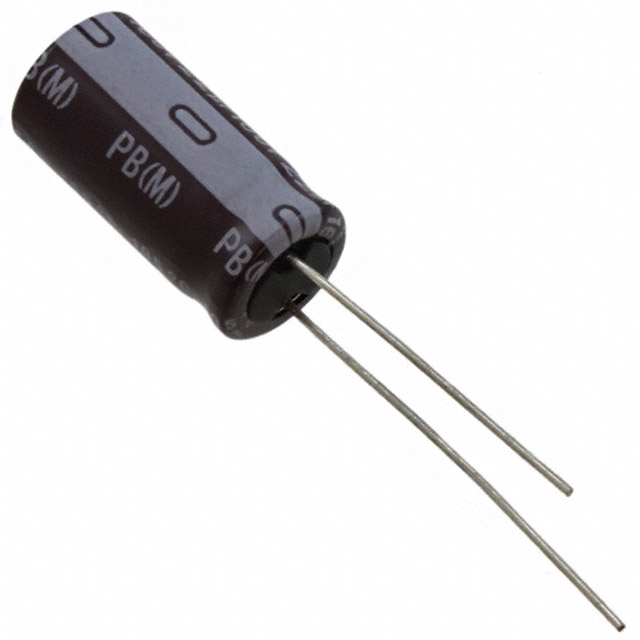

UPB1H331MPD1TD
330 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPB1H331MPD1TD |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| Height - Seated (Max) | 0.846 in |
| Lead Spacing | 0.197 in |
| Lifetime | 7000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 295 mA, 324.5 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
