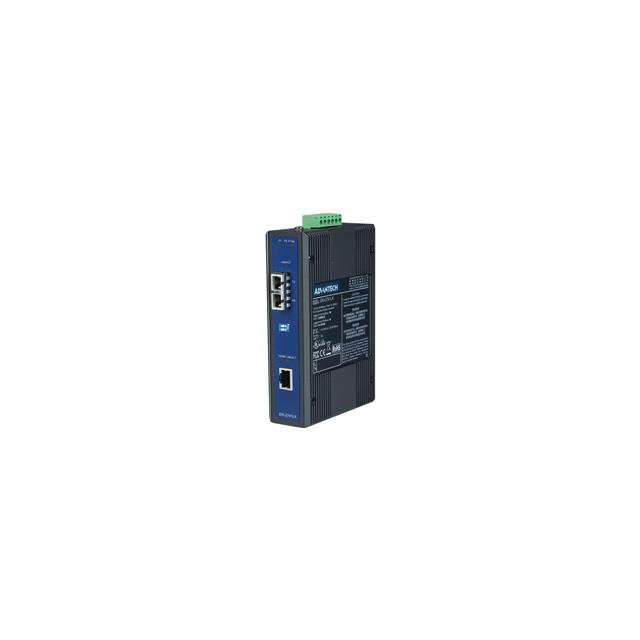

EKI-2741LX-SST-A
ObsoleteAdvantech Corporation
GIGA ETHERNET TO 1000BASE TX/SSF
EKI-2741LX-SST-A
ObsoleteAdvantech Corporation
GIGA ETHERNET TO 1000BASE TX/SSF
Description
General part information
EKI-2741LX-SST-A
GIGA ETHERNET TO 1000BASE TX/SSF
Technical Specifications
Parameters and characteristics for this part
| Specification | EKI-2741LX-SST-A |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SC |
| Copper Ports | 1 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Distance | 10 km |
| Features | LFPT |
| Fiber Mode | Singlemode |
| Fiber Ports | 1 |
| Fiber Type | 1000BASE-LX |
| Ingress Protection | IP30 |
| Mounting Type | Wall Mount, DIN Rail |
| MTU (bytes) | 9216 bytes |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Voltage - Input (Maximum) | 48 V |
| Voltage - Input (Minimum) | 12 V |
