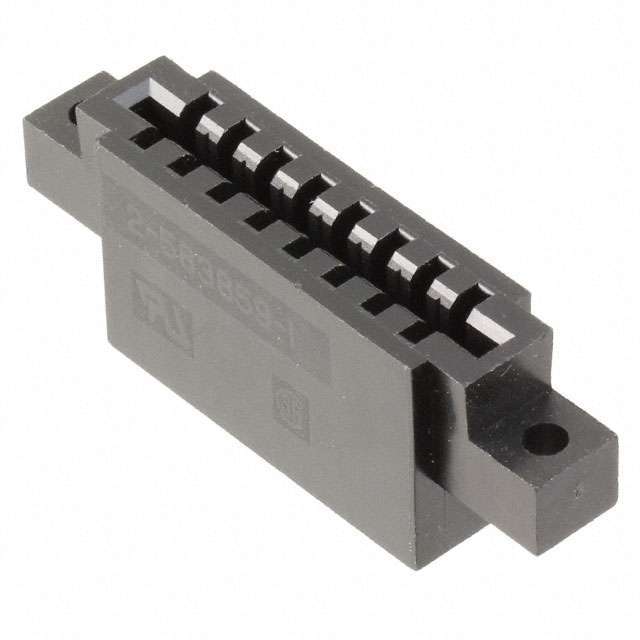

Specification	2-583859-1

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.055 in
Card Type	Non Specified, Dual Edge
Color	Black
Features	Flange
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Material - Insulation	Glass Filled, Polyester Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	16
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in

AMP CST-100 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Note	Material Flammability Rating	Color	Mounting Type	Pitch	Number of Positions	Features	Card Thickness (Max)	Card Thickness (Min)	Flange Feature Diameter	Flange Feature	Card Type	Material - Insulation
TE Connectivity AMP Connectors 2-583859-3	-40 °C	85 °C	Contacts Not Included	UL94 V-0	Black	Panel Mount	0.156 in	72	Flange	0.07 in	0.055 in	0.128 in	Top Mount Opening Unthreaded	Dual Edge Non Specified	Glass Filled Polyester Thermoplastic
