1616008-4
ActiveTE Connectivity AMP Connectors
BH316 (FAA/PMA)=RELAY
1616008-4
ActiveTE Connectivity AMP Connectors
BH316 (FAA/PMA)=RELAY
Description
General part information
1616008-4

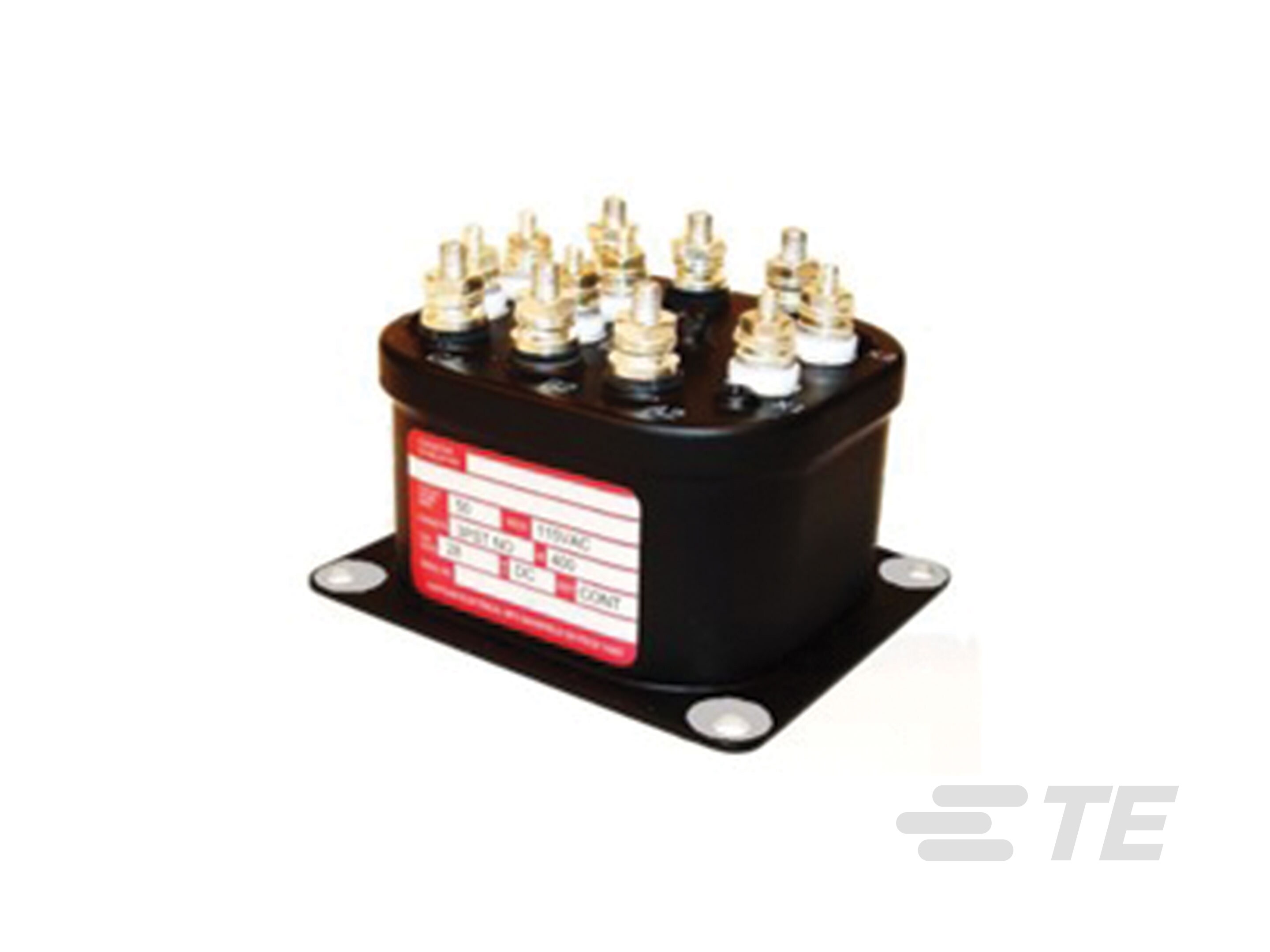

General Purpose Contactor, 3PST-NO, 50 A Contact Rating, 28 VDC Coil Voltage, Chassis Mount, Hermetically Sealed
Technical Specifications
Parameters and characteristics for this part
| Specification | 1616008-4 |
|---|---|
| Coil Voltage | 28 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 50 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.5 VDC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pin Count | 3 pins |
| Switching Voltage AC (Max) | 115 VAC |
| Switching Voltage DC (Max) | 28 VDC |
| Termination Style | Stud |
