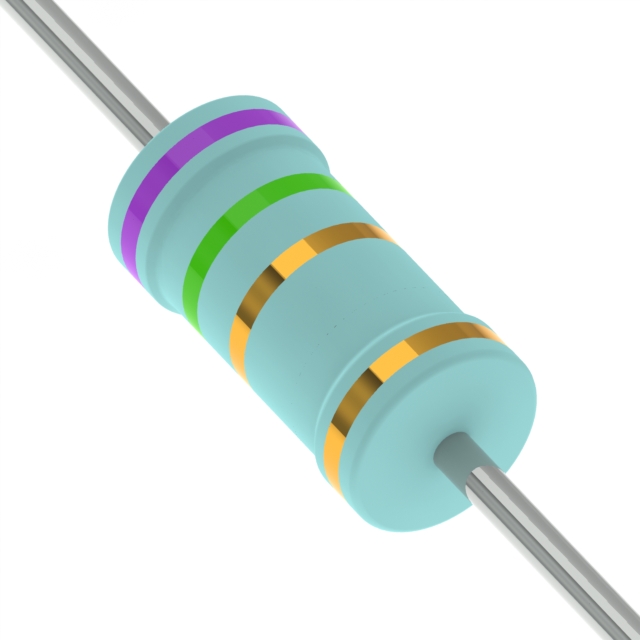

KNP3WSJT-73-7R5
7.5 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | KNP3WSJT-73-7R5 |
|---|---|
| Composition | Wirewound |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 3 W |
| Resistance | 7.5 Ohm |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.61 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
