Description
General part information

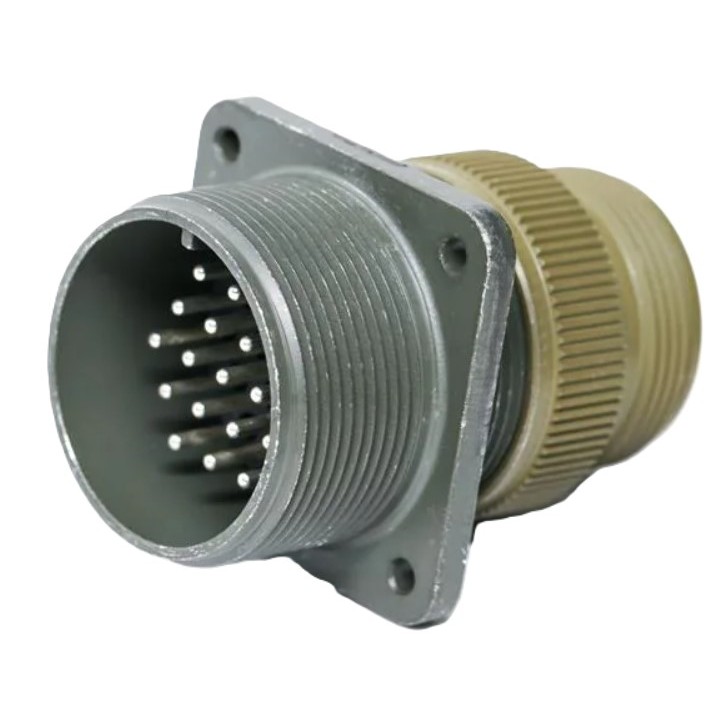

MS3108E20-29P
5015 CIRCULAR 90 DEGREE CABLE PL
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108E20-29P |
|---|---|
| Color | Olive Drab |
| Connector Type | Male Pins, Plug |
| Fastening Type | Threaded |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 17 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-5015 |
| Shell Finish | Olive Drab Chromate, Cadmium |
| Shell Material | Aluminum Alloy |
| Shielding | Unshielded |
| Termination | Solder Cup |
