2320927-3
ActiveTE Connectivity AMP Connectors

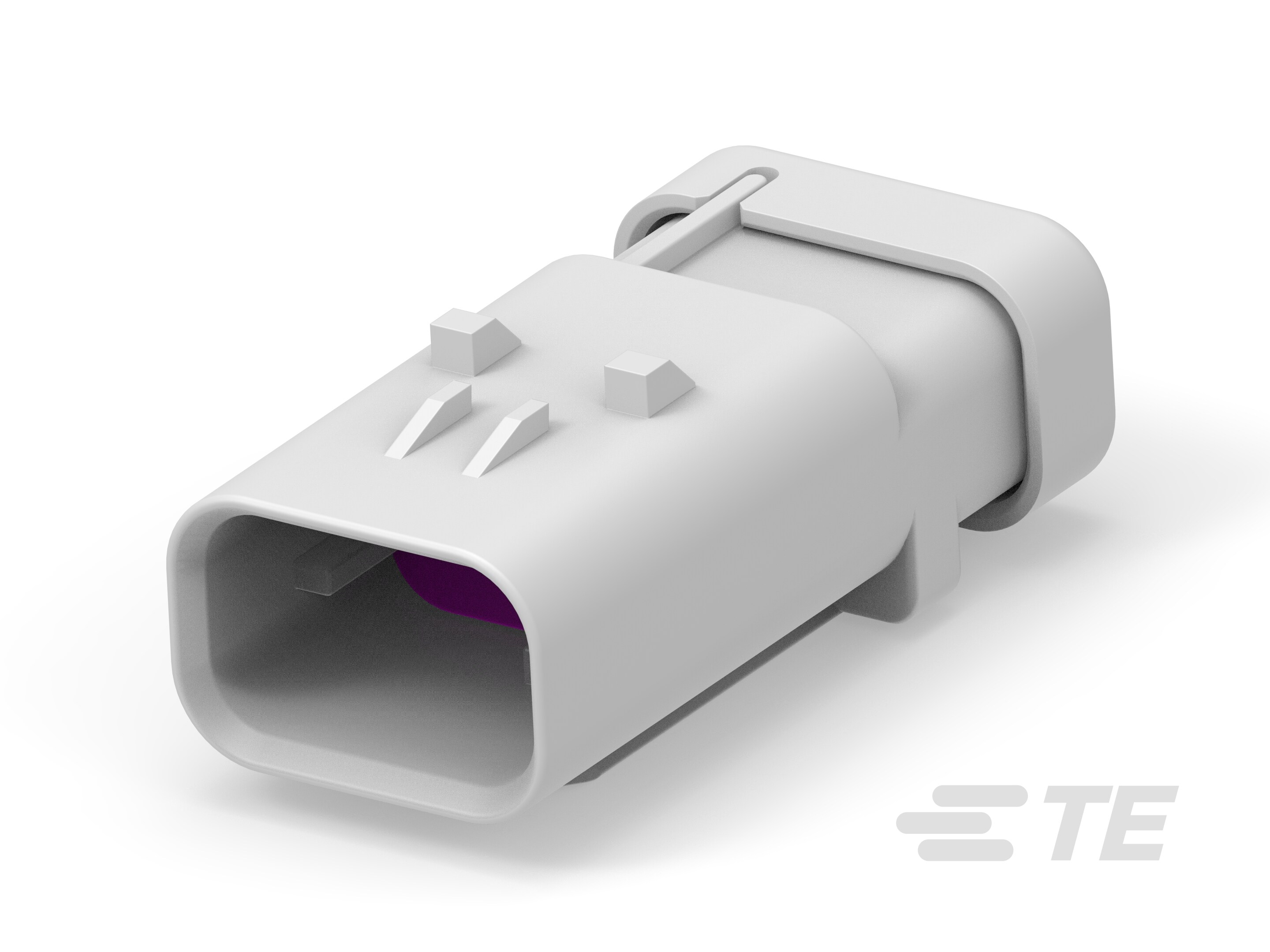

AUTOMOTIVE CONNECTOR HOUSING, KEY C, AMPSEAL 16 HIGH TEMPERATURE SERIES, RECEPTACLE, 3 POSITIONS
2320927-3
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTOR HOUSING, KEY C, AMPSEAL 16 HIGH TEMPERATURE SERIES, RECEPTACLE, 3 POSITIONS
Description
General part information
2320927-3
AUTOMOTIVE CONNECTOR HOUSING, KEY C, AMPSEAL 16 HIGH TEMPERATURE SERIES, RECEPTACLE, 3 POSITIONS
Technical Specifications
Parameters and characteristics for this part
| Specification | 2320927-3 |
|---|---|
| Color | Purple |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | IP67, Sealed, Terminal Position Lock (TPA), Connector Position Assurance (CPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.177 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
