Specification	REM3.5E-2424S/R6/A/SMD/X1

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max)	145 mA
Efficiency	84 %
Features	OCP, OVP, UVLO, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	18 Leads
Package Name	24-SMD Module
Power (Watts)	3.5 W
Size / Dimension Height	0.43 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	18 V
Voltage - Isolation	6 kV
Voltage - Output 1	24 V

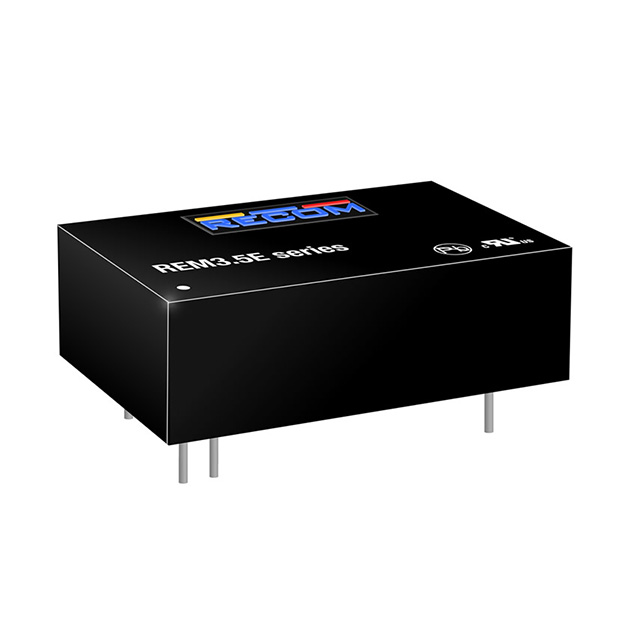

REM3.5E Series

...

Part	Package Leads	Package Name	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Type	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Power (Watts)	Voltage - Input (Max)	Number of Outputs	Applications	Efficiency	Approval Agency	Voltage - Isolation	Current - Output (Max)	Voltage - Input (Min)	Features	Voltage - Output 1	Voltage - Output 2
Recom Power REM3.5E-1212S/R8/A	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	18 V	1	Medical	82 %	CB cURus	8 kV	290 mA	9 V	OCP OVP SCP	12 V
Recom Power REM3.5E-4824S/R8/A/X1	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	75 V	1	Medical	83 %	CB cURus	8 kV	145 mA	36 V	OCP OVP SCP UVLO	24 V
Recom Power REM3.5E-2409D/R8/A/X1	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	36 V	2	Medical	82 %	CB cURus	8 kV	194 mA	18 V	OCP OVP SCP UVLO	9 V	-9 V
Recom Power REM3.5E-0515D/R10/A/CTRL	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	9 V	2	Medical	83 %	CB cURus	10000 Vrms	117 mA	4.5 V	OCP OVP Remote On/Off SCP	15 V	-15 V
Recom Power REM3.5E-2412D/R8/A/CTRL/X1	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	36 V	2	Medical	83 %	CB cURus	8 kV	145 mA	18 V	OCP OVP Remote On/Off SCP UVLO	12 V	-12 V
Recom Power REM3.5E-0509D/R8/A/X1	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	9 V	2	Medical	80 %	CB cURus	8 kV	194 mA	4.5 V	OCP OVP SCP UVLO	9 V	-9 V
Recom Power REM3.5E-1215D/R10/A	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	18 V	2	Medical	82 %	CB cURus	10000 Vrms	117 mA	9 V	OCP OVP SCP	15 V	-15 V
Recom Power REM3.5E-1215D/R6/A/SMD	18 Leads	24-SMD Module	0.43 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Surface Mount	3.5 W	18 V	2	Medical	82 %	CB cURus	6 kV	117 mA	9 V	OCP OVP SCP	15 V	-15 V
Recom Power REM3.5E-1215S/R8/A/CTRL/X1	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	18 V	1	Medical	82 %	CB cURus	8 kV	233 mA	9 V	OCP OVP Remote On/Off SCP UVLO	15 V
Recom Power REM3.5E-4812D/R10/A/X1	7 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	Isolated Module	-40 °C	85 °C	Through Hole	3.5 W	75 V	2	Medical	83 %	CB cURus	10000 Vrms	145 mA	36 V	OCP OVP SCP UVLO	12 V	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

REM3.5E-2424S/R6/A/SMD/X1 | Datasheet

Datasheet
