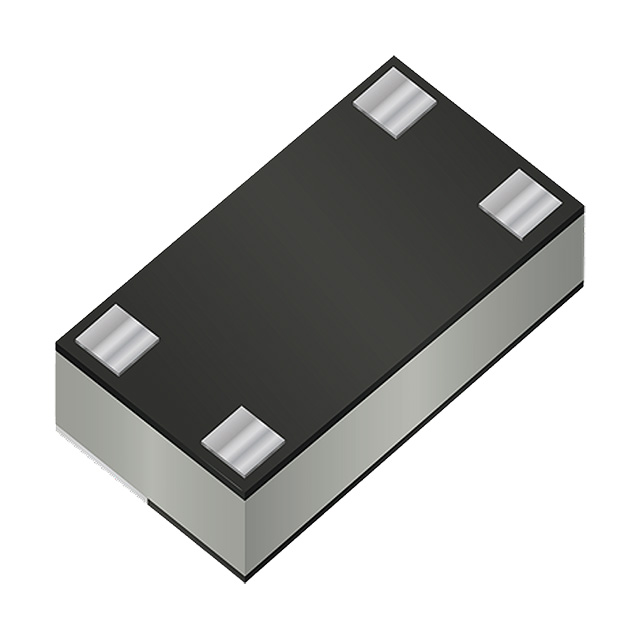

DB0402N3200ANTR\500
ActiveKYOCERA AVX
3DB 90 COUPLER, 0402 SIZE, 3200
DB0402N3200ANTR\500
ActiveKYOCERA AVX
3DB 90 COUPLER, 0402 SIZE, 3200
Description
General part information
DB0402N3200ANTR\500
RF Directional Coupler LTE 3GHz ~ 3.4GHz 1W 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | DB0402N3200ANTR\500 |
|---|---|
| Applications | LTE |
| Coupler Type | Standard |
| Frequency (Max) | 3.4 GHz |
| Frequency (Min) | 3 GHz |
| Insertion Loss | -0.5 dB |
| Isolation | -15 dB |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Power - Max | 1 VA |
| Return Loss | -15 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
