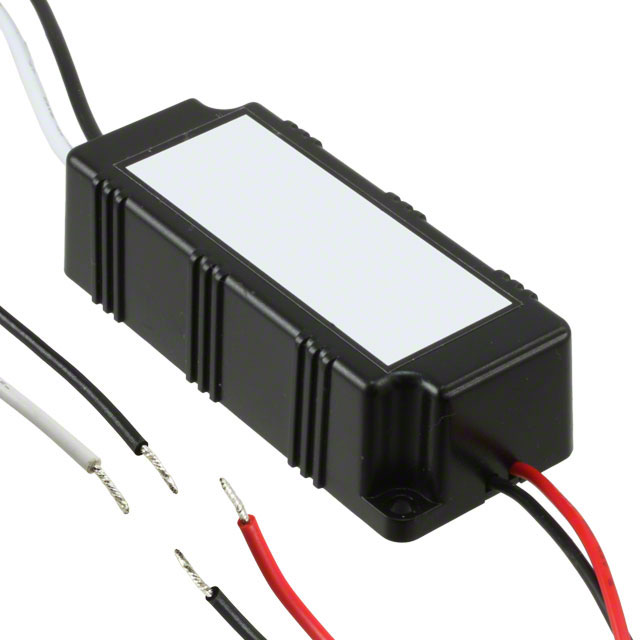

LED12W-48

Active

Thomas Research Products

LED DRIVER CV AC/DC 48V 250MA

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CV AC/DC 48V 250MA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LED12W-48	LED12W Series

Approval Agency	cULus, CE	CE, cURus, cULus, CE
Current - Output (Max) [Max]	250 mA	250 - 500 mA
Dimming	-	Analog
Efficiency	-	80 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power (Watts)	12 W	12 W
Ratings	IP66	IP66
Size / Dimension [x]	85 mm	85 mm
Size / Dimension [x]	3.35 in	3.35 in
Size / Dimension [y]	1.42 in	1.42 in
Size / Dimension [y]	36 mm	36 mm
Size / Dimension [z]	0.91 in	0.91 in
Size / Dimension [z]	23 mm	23 mm
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Voltage	Constant Current, Constant Voltage
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	90 VAC	90 VAC
Voltage - Output	48 V	48 V
Voltage - Output	-	24 V
Voltage - Output	-	12 V
Weight	127.91 g	127.91 g
Weight	0.282 lb	0.282 lb

LED DRIVER CC AC/DC 8-24V 500MA

Part	Dimming	Voltage - Input (Min) [Min]	Topology	Termination Style	Power (Watts)	Ratings	Weight	Weight	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Max) [Max]	Approval Agency	Mounting Type	Type	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Thomas Research Products LED12W-24-C0500-D	Analog	90 VAC	AC DC Converter	Wire Leads	12 W	IP66	127.91 g	0.282 lb	500 mA	80 %	305 VAC	CE, cURus	Chassis Mount	Constant Current	24 V	12 V	1	OCP, OVP, SCP
Thomas Research Products LED12W-48		90 VAC	AC DC Converter	Wire Leads	12 W	IP66	127.91 g	0.282 lb	250 mA		305 VAC	CE, cULus	Chassis Mount	Constant Voltage			1	OCP, OVP, SCP	-30 ░C	60 °C	48 V	85 mm	0.91 in	1.42 in	36 mm	3.35 in	23 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 35.59

General part information

250mA 48V Constant Voltage LED Driver AC DC Converter Topology 1 Output
