Technical Specifications
Parameters and characteristics for this part
| Specification | SR151A101JAATR2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 pF |
| Height - Seated (Max) | 0.15 in |
| Lead Spacing | 0.1 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.1 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3500 | $ 0.16 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information

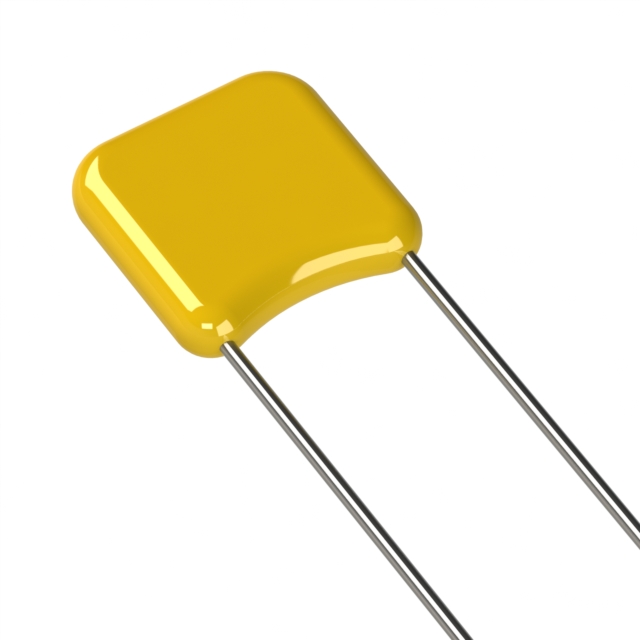

SR151A101JAATR2
100 pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial
Documents
Technical documentation and resources
