1-2040404-3
ActiveTE Connectivity AMP Connectors

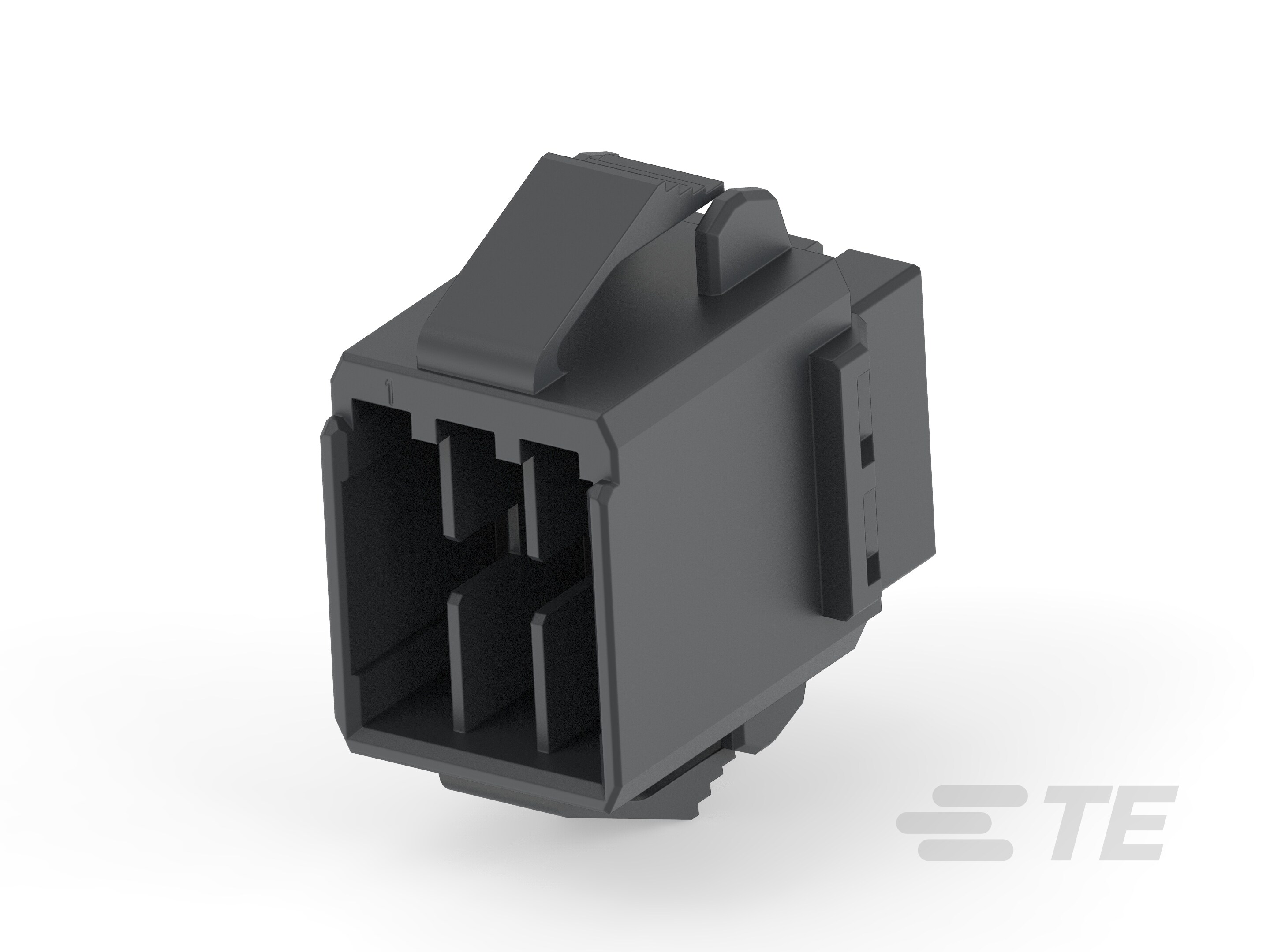

DYNAMIC 1500T TAB HSG 9PX P/M
1-2040404-3
ActiveTE Connectivity AMP Connectors
DYNAMIC 1500T TAB HSG 9PX P/M
Description
General part information
1-2040404-3
Housing, Housing for Male Terminals, Wire-to-Wire, 9 Position, 3.5 mm [.138 in] Centerline, Crimp, 3 Row, Black, Wire & Cable, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2040404-3 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.138 in |
| Row Spacing | 0.13 in |
