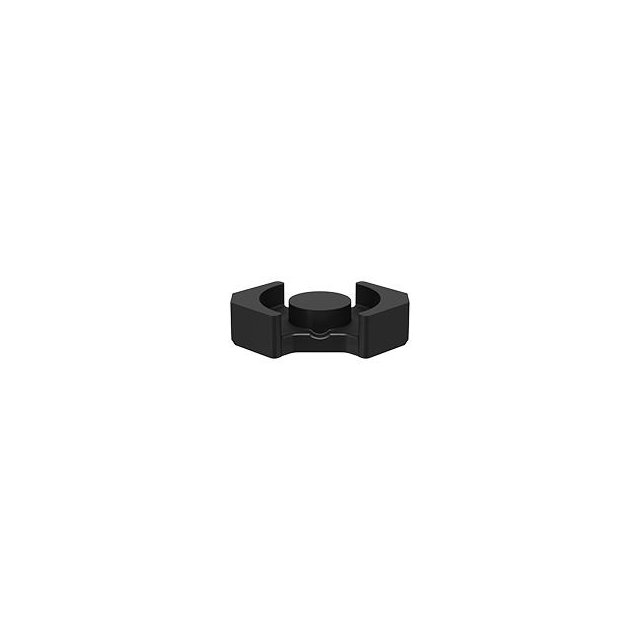

Specification	B65813P0000R087

Core Factor (ΣI/A) mm⁻¹	0.34 mm⁻¹
Core Type	RM
Effective Area (Ae)	99.1 mm²
Effective Length (le)	33.9 mm
Effective Magnetic Volume (Ve)	3360 mm³
Effective Permeability (µe)	1410
Finish	Uncoated
Gap	Ungapped
Height	0.207 in
Inductance Factor (Al)	5.2 µH
Initial Permeability (µi)	2200
Length	1.122 in
Material	N87
Minimum Core Cross Section (Amin) (mm²)	90 mm²
Package Name	RM 10 LP
Tolerance (Negative)	20 %
Tolerance (Positive)	30 %
Width	0.531 in
