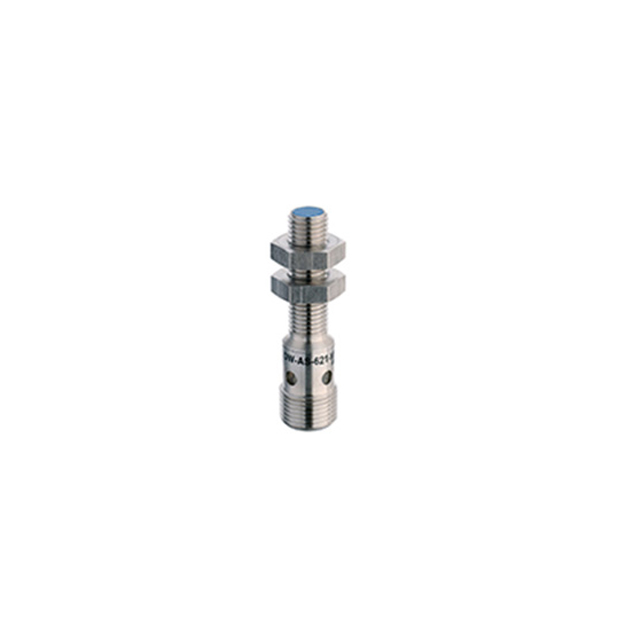

Specification	1202530362

Indicator	No Indicator
Ingress Protection	IP67
Material - Body	Stainless Steel
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Output Type	NPN-NO
Package / Case	Cylinder, Threaded - M8
Sensing Distance	0.079 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

120253 Series

Proximity Sensors CONTRINEX INDUCTIVE SENSOR

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Ingress Protection IP Rating	Ingress Protection Description	Approval Agency	Must Release	Type	Voltage - Supply	Must Operate (Length)	Circuit	Voltage Rating	Current Rating	Termination Style	Detection Capability	Protection	Number of Beams	Operating Range (Min)	Operating Range (Max)	Protective Height
Molex 1202570003	-25 °C	80 °C	Non-Contact	IP67 IP69K	Dust Tight Water Resistant Waterproof	TUV UL	17 mm	Magnetic	24 VDC	8 mm	DPST-NO	24 V	200 mA	Cable Leads
Molex 1202570038	-35 °C	60 °C		IP65 IP67	Dust Tight Water Resistant Waterproof				24 VDC						30 mm	Hand/Arm	105	0.3 m	12 m	1693 mm
Molex 1202570037	-35 °C	60 °C		IP65 IP67	Dust Tight Water Resistant Waterproof				24 VDC						30 mm	Hand/Arm	97	0.3 m	12 m	1564 mm
Molex 1202570005	-25 °C	80 °C	Non-Contact	IP67 IP69K	Dust Tight Water Resistant Waterproof	TUV UL	10 mm	Magnetic	24 VDC	4 mm	DPST-NO	24 V	200 mA	Cable with Connector (M12)
Molex 1202570040	-35 °C	60 °C		IP65 IP67	Dust Tight Water Resistant Waterproof				24 VDC						14 mm	Finger	209	0.3 m	3.5 m	1685 mm
Molex 1202570039	-35 °C	60 °C		IP65 IP67	Dust Tight Water Resistant Waterproof				24 VDC						14 mm	Finger	193	0.3 m	3.5 m	1556 mm
Molex 1202570027	-35 °C	60 °C		IP65 IP67	Dust Tight Water Resistant Waterproof				24 VDC						14 mm	Finger	113	0.3 m	3.5 m	911 mm
Molex 1202570035	-35 °C	60 °C		IP65 IP67	Dust Tight Water Resistant Waterproof				24 VDC						30 mm	Hand/Arm	89	0.3 m	12 m	1435 mm
Molex 1202570012	-25 °C	70 °C	Non-Contact	IP67 IP69K	Dust Tight Water Resistant Waterproof	TUV UL	18 mm	RFID	24 VDC	8 mm			0.4 A	Cable Leads
Molex 1202570014	-25 °C	70 °C	Non-Contact	IP67 IP69K	Dust Tight Water Resistant Waterproof	TUV UL	18 mm	RFID	24 VDC	8 mm			200 mA	Cable Leads
