2242C SL001

Active

ALPHA WIRE

MULTI-PAIR 4COND 18AWG 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 4COND 18AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	2242C SL001

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.46 mm
Jacket (Insulation) Diameter [diameter]	0.333 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

MULTI-PAIR 4COND 18AWG 1000'

Part	Jacket Color	Jacket (Insulation) Material	Conductor Insulation	Shield Coverage	Usage	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Features	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Shield Material	Length	Length
ALPHA WIRE 2242C SL001	Slate	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100 %	Communication, Control	18 AWG	8.46 mm	0.333 in	Copper, Tinned	-20 C	80 C	Foil	Drain Wire	Multi-Pair	0.889 mm	0.035 in	300 V	16	30 AWG	4	Aluminum	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1932.77

General part information

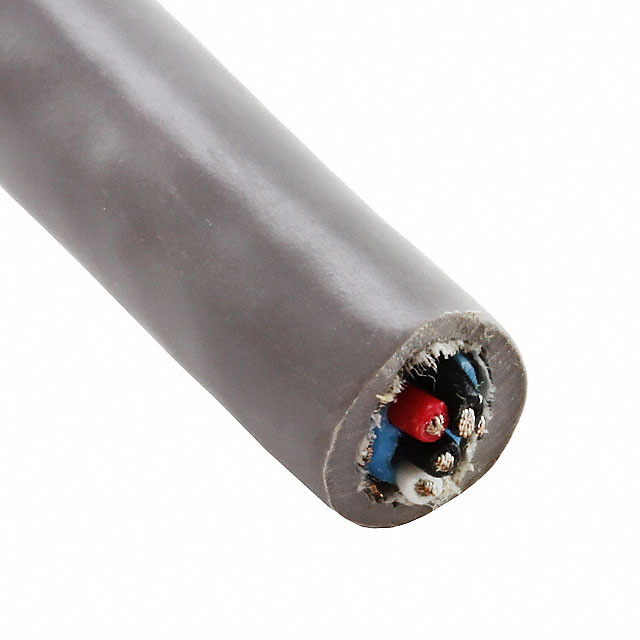

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG Foil 1000.0' (304.8m)
