Description
General part information

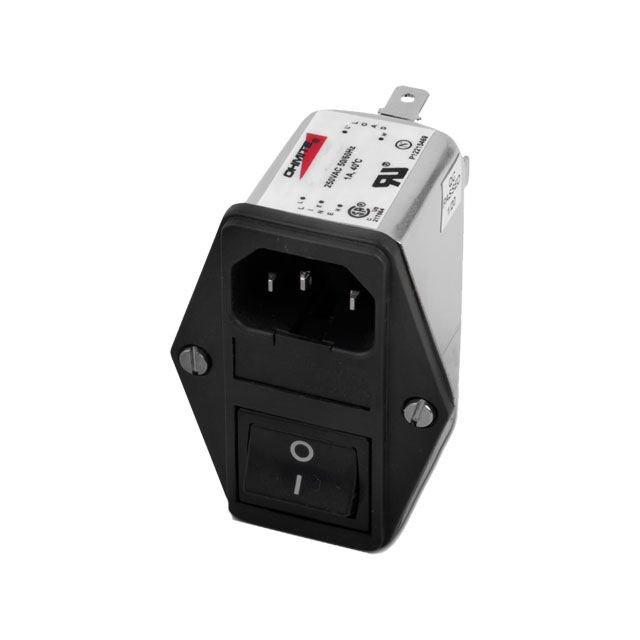

AFM-C06-SD
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | AFM-C06-SD |
|---|---|
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Approval Agency | UR, CE |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Filter Application | Medical, Commercial |
| Filter Subtype | EMI, RFI |
| Filter Type | Filtered |
| Fuse Holder, Drawer | Twin Fused, Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Switch Features | Switch On-Off |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
| Voltage Rating - Appliance Inlet | 250 VAC |
