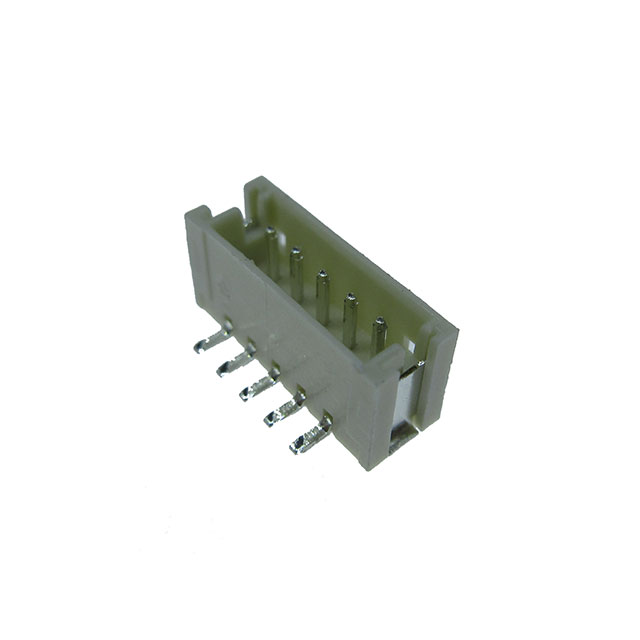

15SH-A-05-TS-SMT-T/R
ActiveAdam Tech
CONN HEADER SMD 5POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
15SH-A-05-TS-SMT-T/R
ActiveAdam Tech
CONN HEADER SMD 5POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 15SH-A-05-TS-SMT-T/R |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 0.7 A |
| Fastening Type | Friction Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.197 in |
| Insulation Height | 5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
15SH-A Series
| Part | Shrouding | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Connector Type | Contact Shape | Number of Rows | Voltage Rating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Fastening Type | Contact Material | Number of Positions Loaded | Contact Finish - Post | Insulation Height | Insulation Height | Mounting Type | Number of Positions | Insulation Color | Style | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Shrouded - 4 Wall | Male Pin | 0.106 in | 2.69 mm | UL94 V-0 | Header | Circular | 1 | 50 VAC | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Kinked Pin Solder | Friction Lock | Brass | All | Tin | 4.6 mm | 0.181 in | Through Hole | 4 | Ivory | Board to Cable/Wire | ||
Adam Tech | Shrouded - 4 Wall | Male Pin | 0.106 in | 2.69 mm | UL94 V-0 | Header | Circular | 1 | 100 VAC | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Kinked Pin Solder | Friction Lock | Brass | All | Tin | 3.7 mm | 0.146 " | Through Hole Right Angle | 2 | Ivory | Board to Cable/Wire | 1.5 A | |
Adam Tech | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 1 | 50 VAC | -25 °C | 85 °C | Solder | Friction Lock | Brass | All | Tin | 5 mm | 0.197 in | Surface Mount | Natural | Board to Cable/Wire | 0.7 A | Solder Retention | ||||
Adam Tech | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 1 | 50 VAC | -25 °C | 85 °C | Solder | Friction Lock | Brass | All | Tin | 5 mm | 0.197 in | Surface Mount | 8 | Natural | Board to Cable/Wire | 0.7 A | Solder Retention | |||
Adam Tech | Shrouded - 4 Wall | Male Pin | 0.106 in | 2.69 mm | UL94 V-0 | Header | Circular | 1 | 50 VAC | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Kinked Pin Solder | Friction Lock | Brass | All | Tin | 4.6 mm | 0.181 in | Through Hole | 2 | Ivory | Board to Cable/Wire | ||
Adam Tech | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 1 | 50 VAC | Thermoplastic | -25 °C | 85 °C | Solder | Friction Lock | Brass | All | Tin | 5 mm | 0.197 in | Surface Mount | Natural | Board to Board Cable | 0.7 A | Solder Retention | |||
Adam Tech | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 1 | 50 VAC | Nylon 9T Polyamide (PA9T) | -25 °C | 85 °C | Solder | Friction Lock | Brass | All | Tin | 3.7 mm | 0.146 " | Surface Mount Right Angle | 7 | Ivory | Board to Cable/Wire | Solder Retention | |||
Adam Tech | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 1 | 50 VAC | -25 °C | 85 °C | Solder | Friction Lock | Brass | All | Tin | 5 mm | 0.197 in | Surface Mount | 4 | Natural | Board to Cable/Wire | 0.7 A | Solder Retention | |||
Adam Tech | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 1 | 50 VAC | Nylon 9T Polyamide (PA9T) | -25 °C | 85 °C | Solder | Friction Lock | Brass | All | Tin | 3.7 mm | 0.146 " | Surface Mount Right Angle | 6 | Ivory | Board to Cable/Wire | Solder Retention | |||
Adam Tech | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 1 | 50 VAC | -25 °C | 85 °C | Solder | Friction Lock | Brass | All | Tin | 5 mm | 0.197 in | Surface Mount | 10 | Natural | Board to Cable/Wire | 0.7 A | Solder Retention |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.46 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.30 | |||
| Tape & Reel (TR) | 1000 | $ 0.27 | ||
| 2000 | $ 0.25 | |||
| 3000 | $ 0.24 | |||
| 5000 | $ 0.23 | |||
| 7000 | $ 0.22 | |||
| 10000 | $ 0.22 | |||
| 25000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
15SH-A Series
Connector Header Surface Mount 5 position 0.059" (1.50mm)
