PKH.N0.3GL.AG
ActiveLEMO

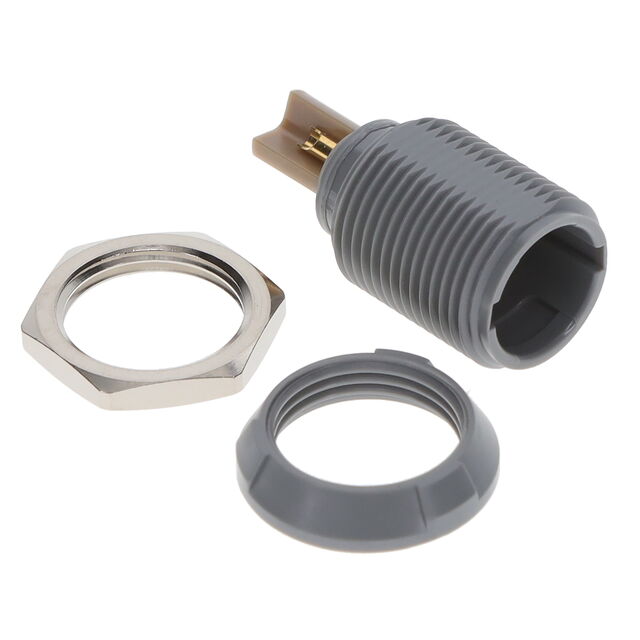

CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKH.N0.3GL.AG
ActiveLEMO
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PKH.N0.3GL.AG | PKH.N0 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Color | Gray | Gray, Yellow, Red |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 9 A | 9 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Number of Positions | 3 | 3 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | H | H |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU) |
| Shell Size - Insert | N03 | N03 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VAC | 250 VAC |
PKH.N0 Series
CONN RCPT MALE 3P GOLD SLDR CUP
| Part | Orientation | Current Rating (Amps) | Shielding | Ingress Protection | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Insert Material | Fastening Type | Shell Material | Applications | Number of Positions | Mounting Feature | Voltage Rating | Connector Type | Primary Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PKH.N0.3GL.AJ | H | 9 A | Unshielded | IP50 | Gray, Yellow | 150 °C | -50 °C | Gold | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 | Front and Rear Side Nut | 250 VAC | Male Pins, Receptacle | Plastic | N03 |
LEMO PKH.N0.3GL.AR | H | 9 A | Unshielded | IP50 | Gray, Red | 150 °C | -50 °C | Gold | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 | Front and Rear Side Nut | 250 VAC | Male Pins, Receptacle | Plastic | N03 |
LEMO PKH.N0.3GL.AG | H | 9 A | Unshielded | IP50 | Gray | 150 °C | -50 °C | Gold | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 | Front and Rear Side Nut | 250 VAC | Male Pins, Receptacle | Plastic | N03 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.70 | |
| 10 | $ 16.38 | |||
| 25 | $ 15.67 | |||
| 50 | $ 15.17 | |||
| 100 | $ 14.66 | |||
| 250 | $ 13.85 | |||
| 500 | $ 13.45 | |||
Description
General part information
PKH.N0 Series
3 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup
