PE45698
ActivePasternack
SMA FEMALE RIGHT ANGLE CONNECTOR
PE45698
ActivePasternack
SMA FEMALE RIGHT ANGLE CONNECTOR
Description
General part information
PE45698

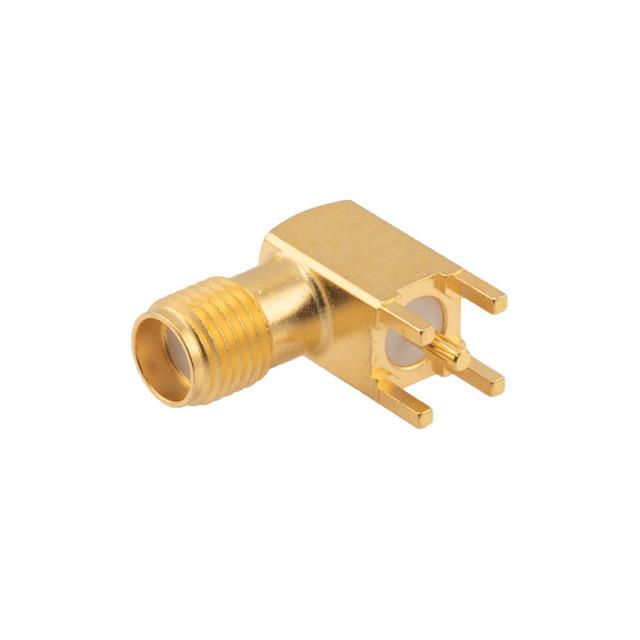

SMA Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45698 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
