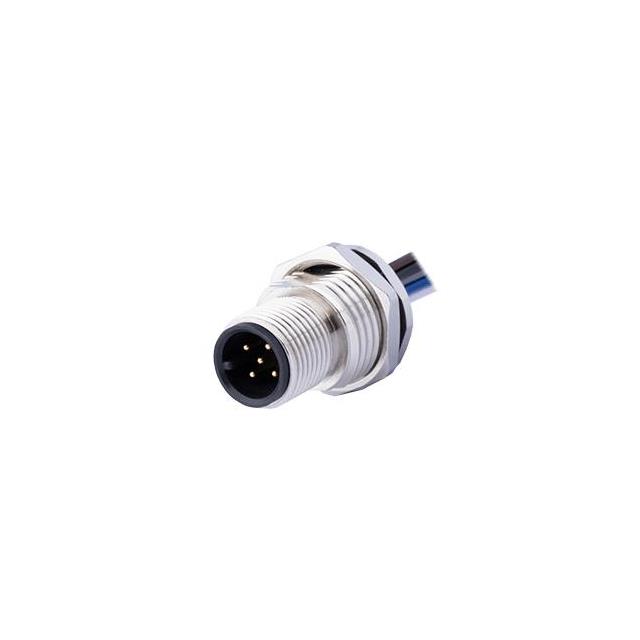

CDM1220-08A-MW-F16-050-67
ActiveSame Sky (Formerly CUI Devices)
CIRCULAR METRIC CONNECTORS M12 MALE PANEL MOUNT,SOLDER TYPE,FRONT FASTENEDM16*1.5,ACODE 5PIN,SCREW COPPER ALLOY,050M
CDM1220-08A-MW-F16-050-67
ActiveSame Sky (Formerly CUI Devices)
CIRCULAR METRIC CONNECTORS M12 MALE PANEL MOUNT,SOLDER TYPE,FRONT FASTENEDM16*1.5,ACODE 5PIN,SCREW COPPER ALLOY,050M
Description
General part information
CDM1220-08A-MW-F16-050-67
Circular Cable Assembly Unshielded 1.67' (508.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CDM1220-08A-MW-F16-050-67 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 8 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 1.67 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
