XCKP2118N12
ActiveLIMIT SWITCH, ROLLER LEVER, SPDT-1NO, SPDT-NC, 10 A, 240 V, 0.1 N
XCKP2118N12
ActiveLIMIT SWITCH, ROLLER LEVER, SPDT-1NO, SPDT-NC, 10 A, 240 V, 0.1 N
Description
General part information
XCKP2118N12

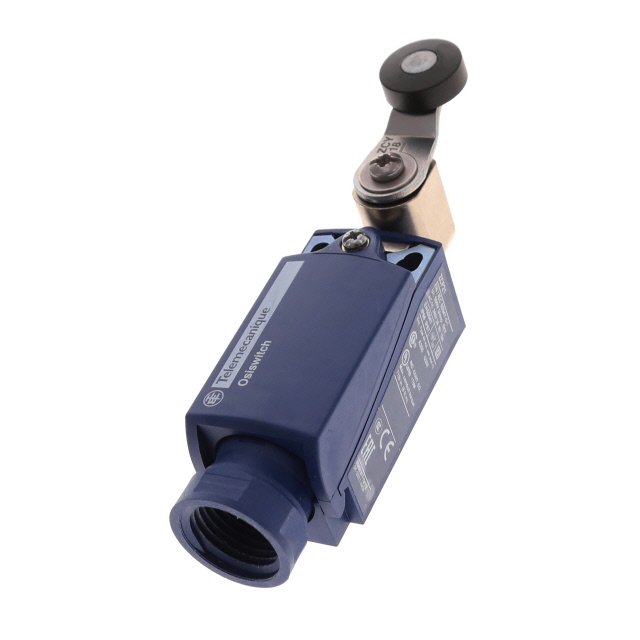

The XCKP2118N12 is a Limit Switch with plastic body and Zamak head. This XCKP series fixed body rotary head limit switch features thermoplastic spring return roller lever operator, 1NC + 1NO snap action contacts, by 30° cam switch actuation and screw-clamp terminals. The standard format limit switch is suitable for use with the OsiSense XC range products. It meets the EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 and CSA C22.2 No 14 standards. It is a comprehensive offer of positive opening snap action contacts for a simpler and safer machine design.
Technical Specifications
Parameters and characteristics for this part
| Specification | XCKP2118N12 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | DPDT (DB/DM) |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
