Description
General part information
GMCT26M0E100J0/AA

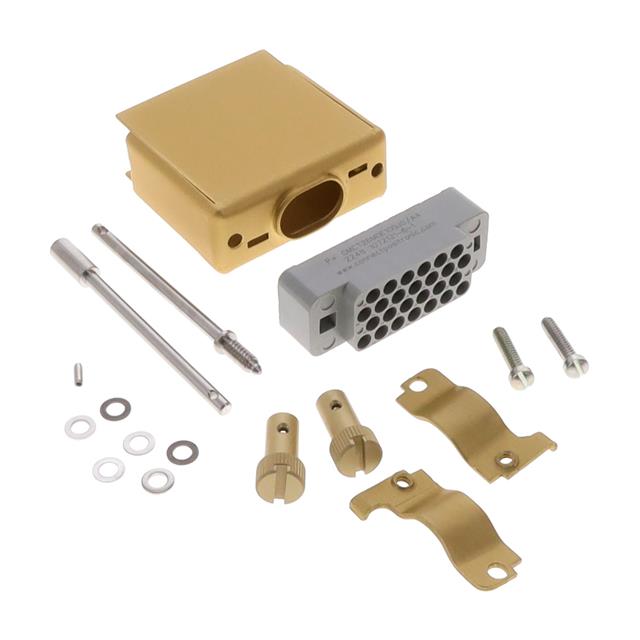

26 Rectangular Connectors - Housings Plug Gray 0.150" (3.81mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | GMCT26M0E100J0/AA |
|---|---|
| Color | Gray |
| Connector Style | Backplane |
| Connector Type | Plug, Housing for Male Contacts |
| Connector Usage | Header |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | Jackscrews, Jackscrew |
| Insulation Material | Diallyl Phthalate (DAP), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.15 in |
