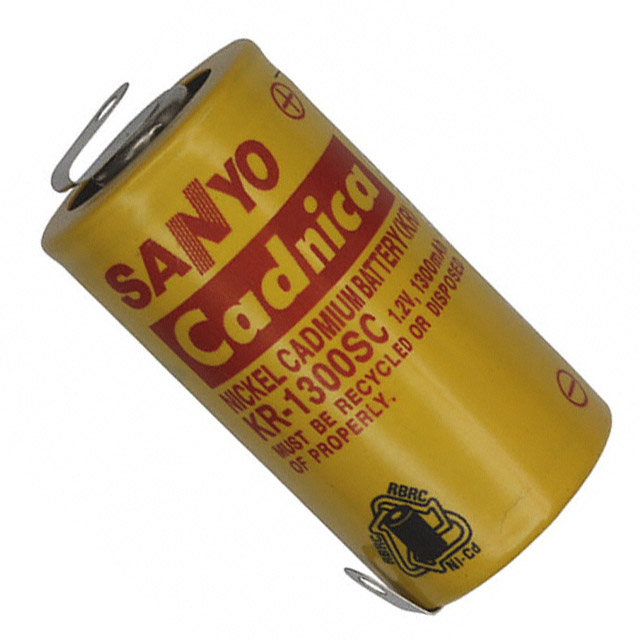

KR-1300SCT
ObsoletePanasonic Energy
BATTERY NICAD 1.2V 1.3AH SC
KR-1300SCT
ObsoletePanasonic Energy
BATTERY NICAD 1.2V 1.3AH SC
Description
General part information
KR-1300SCT
SC 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 1.3Ah
Technical Specifications
Parameters and characteristics for this part
| Specification | KR-1300SCT |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Cadmium |
| Capacity (Charge) | 1.3 Ah |
| Discharge Rate (Current) | 260 mA |
| Standard Charge Current | 130 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Solder Tab |
| Voltage - Rated | 1.2 VAC |
| Weight | 44.91 g |
